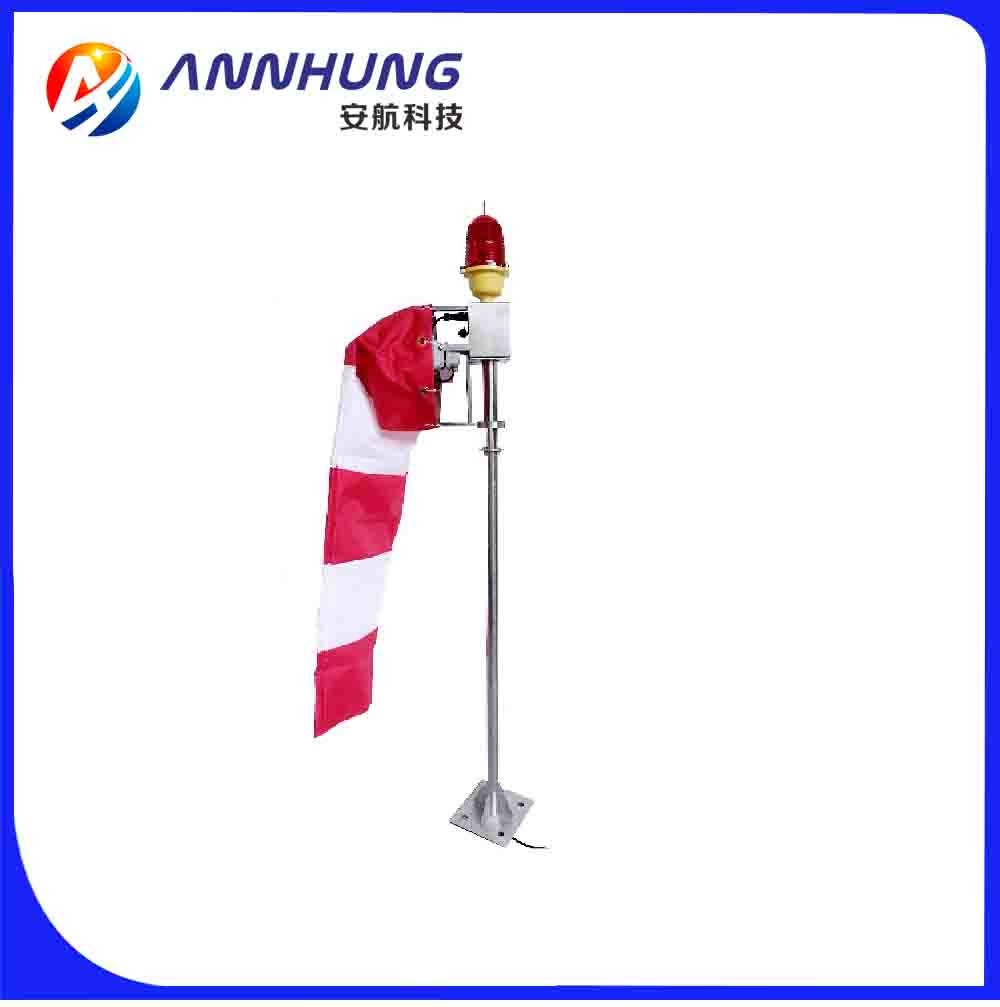

Internally Illuminated Heliport Wind Cone Helipad Landing Lights
obstruction light on top for aircraft warning
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.1.1
FAA AC 150/5390-2B Heliport Design Guide
FAA 150_5345_27e FAA SPECIFICATION FOR WIND CONE ASSEMBLIES
An aerodrome shall be equipped with at least one wind cone as wind

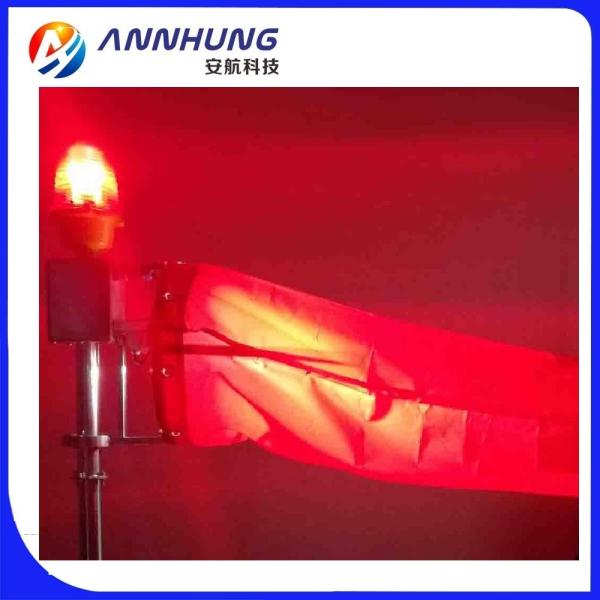

direction indicator. The flood light for illumination is inside
wind sock, it will rotate together with windsock too. One
obstruction light on top for aircraft warning.
A wind direction indicator shall be located so as to be visible
from aircraft in flight or on the movement area
and in such a way as to be free from the effects of air
disturbances caused by nearby objects.
This specification covers fabric windsocks and their supporting
structures used at airports and heliports to indicate surface wind
conditions.
Features of Helipad Landing Lights
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Pole is made of corrosion resistance and wind resistance stainless
steel 304(SS316 is optional)
One obstruction light on top, one flood light for illumination
Pole height is customized(1meter, 2meter, 2.5m, 3m, 4m, 5m...)
Windsock color is: orange(Nylon), red/white(PVC)
Windsock dimension:
Pole height:＜4m, Length: 1.2m, big diameter: 300mm, small diameter:
150mm
Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small
diameter: 300mm
Pole height: ＞6m, Length: 3.6m, big diameter: 900mm, small
diameter: 450mm
Other size is customized.
Frangible coupling is optional
Optional: 3 Metllaic cord for ground fixation at 120°space
Optional: Extra movable part of the base to be rotated to 90°to
lower the windsock for maintenance
The wind direction indicator should be in the form of a truncated
cone made of fabric and should have a length of not less than 3.6 m
and a diameter, at the larger end, of not less than 0.9 m. It
should be constructed so that it gives a clear indication of the
direction of the surface wind and a general indication of the wind
speed.
The colour or colours should be so selected as to make the wind
direction indicator clearly visible and understandable from
a height of at least 300 m, having regard to background. Where
practicable, a single colour, preferably white or orange, should be
used. Where a combination of two colours is required to give
adequate conspicuity against changing backgrounds, they should
preferably be orange and white, red and white, or black and white,
and should be arranged in five alternate bands, the first and last
bands being the darker colour.
| Environmental Factors | |
Ambient Temperature(℃) | -55~70 |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
Datasheet download: download
