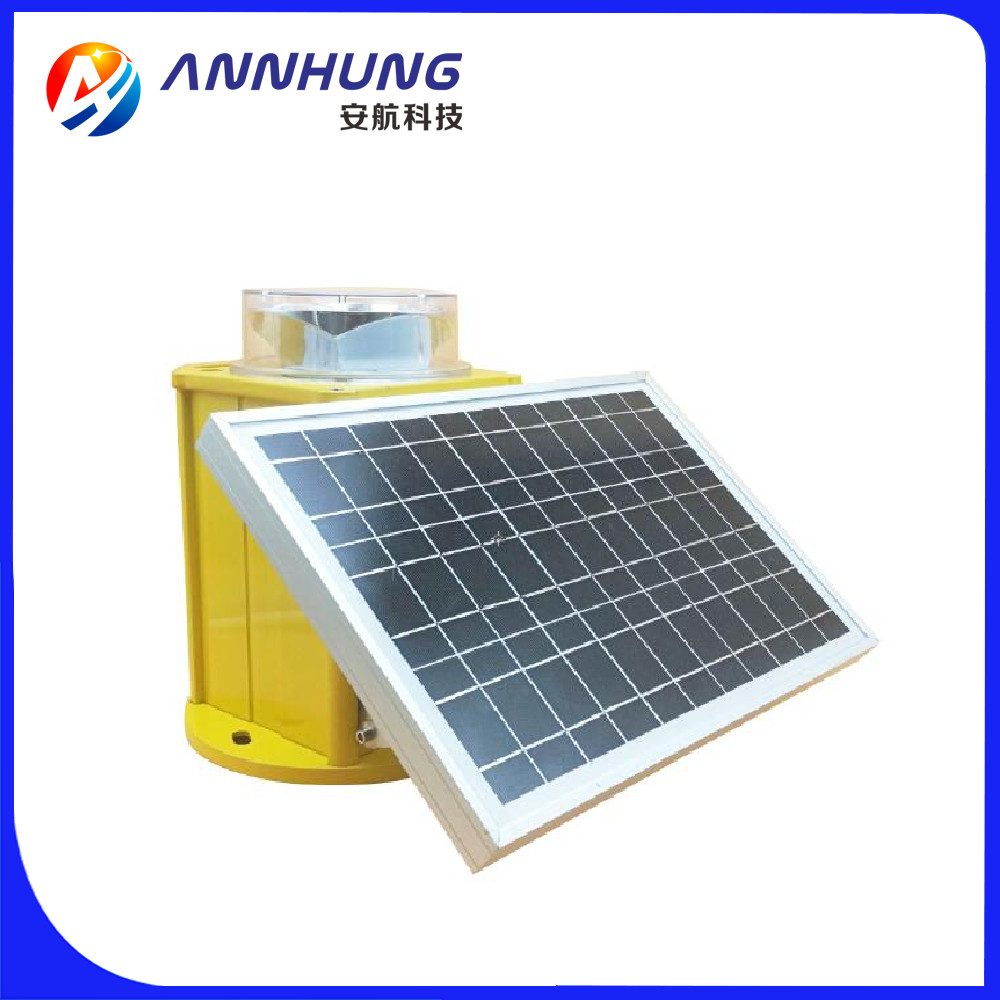

Solar Aviation Obstruction Light ICAO Red Flashing IP66 20-60FPM 2000cd Solar Tower Warning Light

This Medium-intensity Type B Solar Aviation Obstruction Light flashing RED color 2000candela, mostly are used on top of tower which height is between 45 to 105 meters.

Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(10°15°20°25°30°35°40°) for get as much as sunlight in different area. Since LED power comsumtion is very less, combined with our specific reflector design to converge the light, we could use very small battery and solar panel can ensure long automony.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Solar Aviation Obstruction Light

FAA L-864

Featurer of Solar Aviation Obstruction Light​

Electrical

Ultra high intensity LED light source saving power consumption and maintenance

Physical

UV & vibrations protected polycarbonate lens for converging light

Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation

Battery: Lithium ion battery

The solar panel is packed separately from the light to decrease the size of packing as a result of saving the transportation cost

System design

Solar panel as photocell for day & night working mode (dusk to dawn mode)

ON/OFF button make local control easier

Optional

GPS Synchronization

Infrared LED for pilot using NVG

Dry contact alarm output

Application of Solar Aviation Obstruction Light​

AH-MS-B3 medium-intensity solar Aviation Obstruction Light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.

AH-MS-B3 Solar Aviation Obstruction Light​ Datasheet download: download AH-MS-B3 LED Medium-intensity Type B L864...
