    Medium Intensity Led Aircraft Lights , High Pole Aircraft Warning Lights On Towers

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-MI-C
    Certification : CE, RoHS
    Price : 1-500
    Payment Terms : L/C, T/T, Western Union, D/A
    Supply Ability : 500 pieces per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

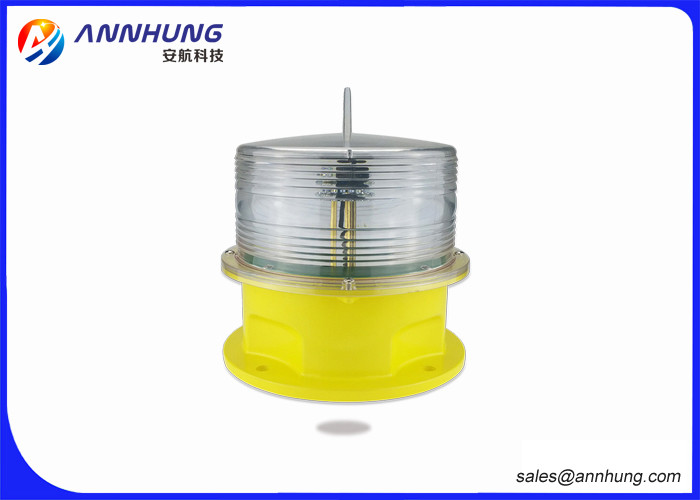

    Medium Intensity Led Aircraft Lights , High Pole Aircraft Warning Lights On Towers


    This LED Medium-intensity aviation warning light can be used alone on the top of the high-rise building, high chimney, Telecom tower etc whose height is between 45m and 105m.More safe for you high buildings.

    Product Overview:

    Electrical
    LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
    Power supply available in DC(12-48VDC) or AC(110-240VAC). Meet different projects requirements.
    Physical
    Bird deterrent spike on top
    Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
    UV protection Powder coated bright yellow color base make better visibility
    Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection. be design
    System design
    Built-in photocell for day/night operation(dusk to dawn operation)
    Surge and lightning protection
    Optional
    Alarm contact for remote monitoring
    Infrared LED for pilot using NVG
    GSM cellphone monitoring  RS485 communication part for monitoring
    GPS synchronization
    Adjustable flashing rate(20-30-40-50-60)


    Application
    AH-MI-C Medium-intensity red light could be used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is 45-105meter, and low intensity lights installed on lower

    place.
    Medium-intensity type B light also use with Medium-intensity type A and high-intensity light when obstacle is more than 105meter. Products' performance can be customized.

    More detailed parameter:


    Light SourceLED
    Available ColorsRed
    Intensity(cd)>2,000cd
    Flash CharacteristicsSteady burning
    Body Material
    UV protective Polycarbonate
    Base MaterialPowder-coated Die-casting aluminum
    Mounting190×190×12
    Dimension(mm)220*220*233
    Weight(kg)2.3
    Safer design
    Surge and lightning protection
    Product Life Expectancy
    Average 5 years
    Humidity0%-100%
    Wind Speed80m/s
    WaterproofIP67
    ICAO
    Annex 14 Volume 1,'Aerodrome Design and Operations’ Sixth edition July 2013, table 6.3 Medium-intensity Red Obstacle Light
    FAAL-864

    Our service:

    Produce imagine:


    Medium Intensity Led Aircraft Lights , High Pole Aircraft Warning Lights On Towers


    Express:

    Medium Intensity Led Aircraft Lights , High Pole Aircraft Warning Lights On Towers

    Shenzhen Anhang Technology Company Limited is a specialized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, and have more than 8 years manufacturing experience for clients from whole world. Our products' functions can be customized for different projects.If you are interested, feel free to contact me.
