Solar Aviation Obstruction, LED Low Intensity High Building
Aircraft Warning LIghts Red Color
This light is adopting insert high efficient solar panels
integrated design, cooperate with solar dedicated lithium ion
battery as power supply. Built-in photocell ensure LED only working
at night and closed in the daytime automatically. Easy installation
and save power.
It is designed for marking top of obstacle that do not exceed 45
meters in height. Compliance ICAO standard.
Compliance:
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low
Intensity Type A / B Obstruction Light
FAA L-810
Electrical
LED as light source, life experience >100,000hours. Meet your
projects requirement
Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist
snow and rain
Built-in mono crystalline silicon solar panel, conversion
efficiency is better than poly crystalline silicon.
Best function design make you purchase with confidence.
System design
Built-in photocell (Photo diode) for day & night working mode (dusk
to dawn mode)
ON/OFF button make local control easy
Flashing(20fpm)/steady toggle switch under base
Optional
Infrared LED for pilot using NVG(Night Vision Goggles). Performance
can be customized for you.
Application
AH-LS-L solar low-intensity light is specialized used on the top of
the High Chimney, Telecommunication tower, Wind Turbine where
there is no cable power supply and those facilities which have high
requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter
Packaging & Delivery
We usually pack it with plastic bag and standard export carton(six sides build in foam) and deliver it
within 2 to 20 days after receiving the payment according to the
quantity.
After-sales service
1. 2 years full warranty, 5 years maintenance since the purchasing
date.
2. Since the purchasing date, full warranty from 1st year to 2nd
year, free maintenance cost and material cost.
3. Since the purchasing date, maintenance from 3rd year to 5th
year, free maintenance charge.
Product Descripton
| Description | Parameter |
|---|
| Light source | LED |
| Emitting color | Red |
Intensity(cd) | 10cd(Steady), 32cd(Flashing) |
Operation Mode | Dusk-to-Dawn operation |
LED Life Experience(hours) | ≥100,000 |
| Chargiing Regulation | Microprocessor controlled |
| Ambient temperature | -55C ~ +70C |
| IP rating | IP68 |
| Net Weight | 1.0kg |
| Base material | Powder-coated Die casting aluminum |
Dimension Drawing
Installation imagine:

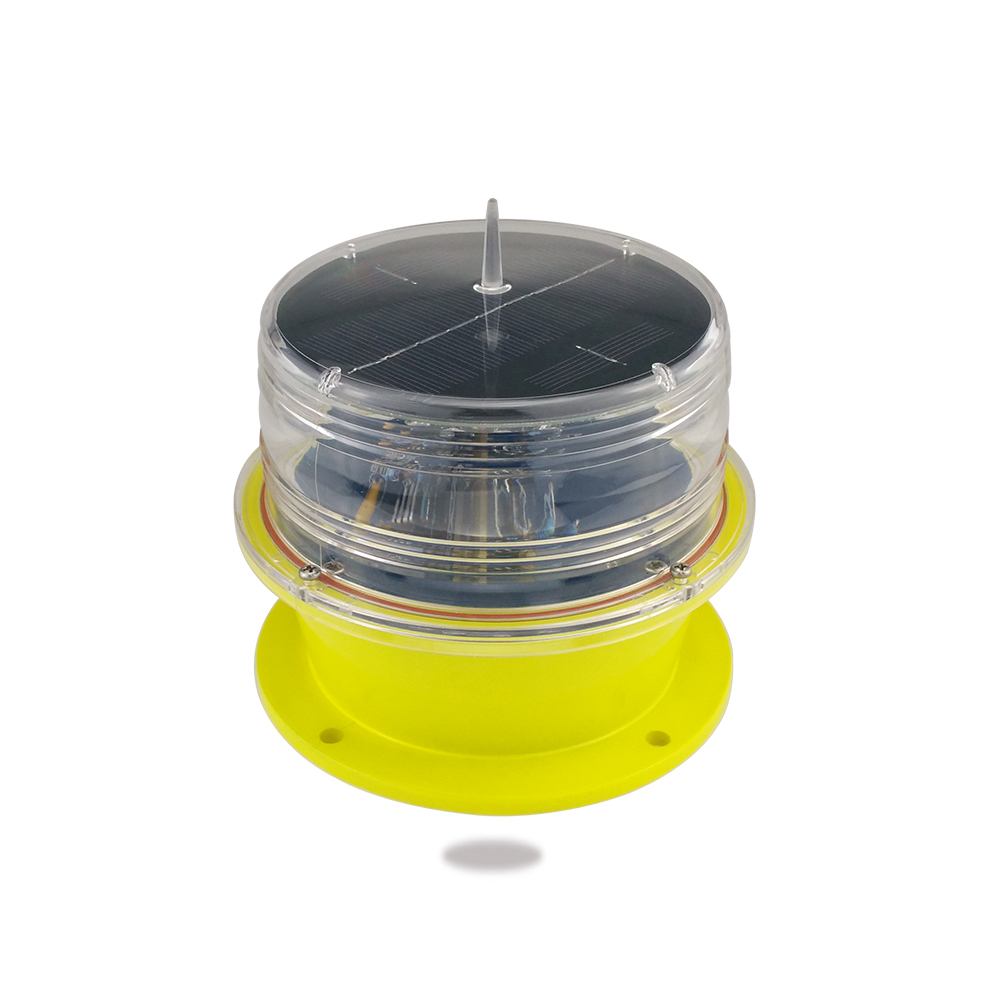

Product Picture
