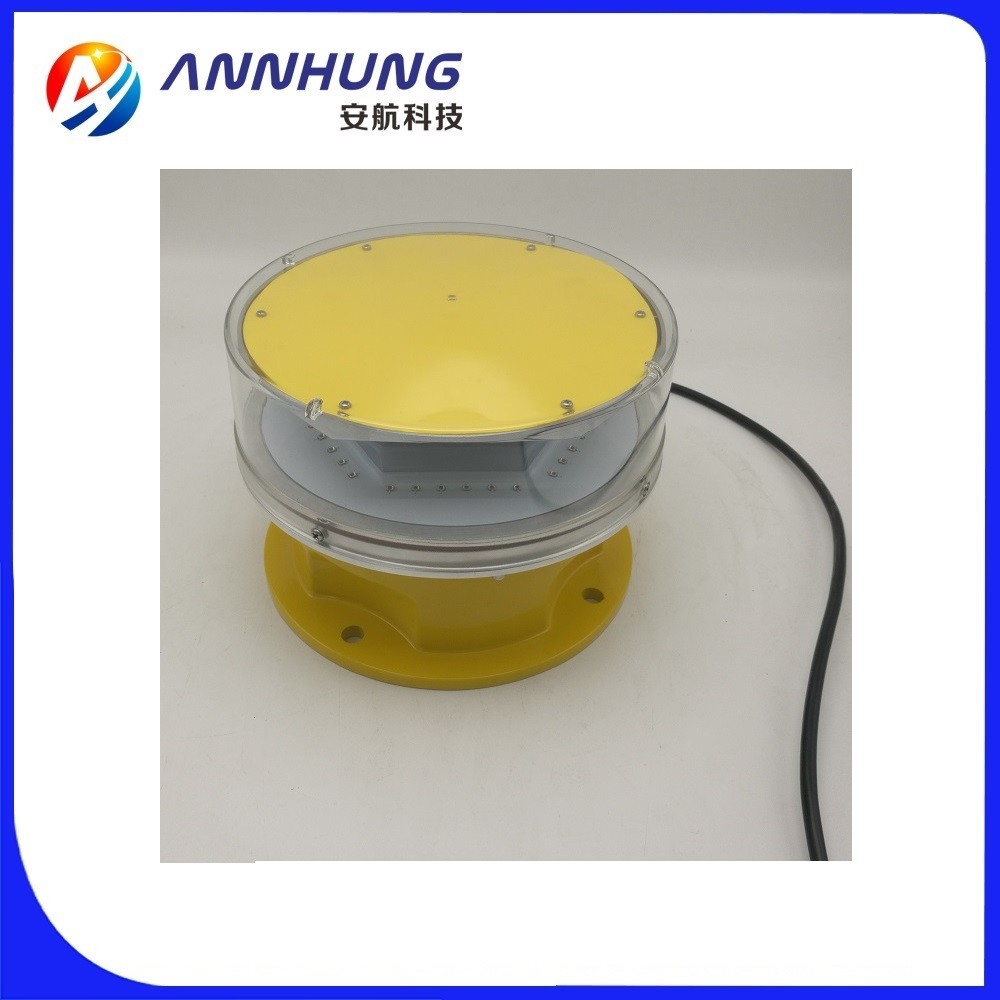

Type A High Chimney Lights, Medium Intensity FAA L865 LED Aviation Obstruction Light Flying At High Altitud Safety Light

This Medium-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle which height is between 105 to 150 meters.Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance.

Compliance

ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light
FAA L-865

Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12-48VDC) or AC(110-240VAC)

Physical
Unique design and UV protected polycarbonate lens for converging light
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high.

System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection

Optional
Alarm contact for remote monitoring
Infrared LED for pilot using NVG
RS485 communication part for monitoring
User adjustable flashing rate(40, 50, 60 flashes/minute)
GPS synchronization

Application
AH-MI-A2 medium-intensity aviation warning light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low intensity lights & medium intensity type B light installed on the lower place.

More detailed parameter:

Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf

Anhang Technology is a Specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City,China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE,ICAO,FAA,CAAC,IALA,ROHS,ISO9001, ISO14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), FAA(Federal Aviation Administration)CAAC(Civil Aviation Administration of China).All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we've got 42+ patent certificates.

Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technology like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.

Our products are covered by a lifetime warranty. If the product ever fail in any way, we will repair or replace the item for as long as you own the product.
