    FAA L857 Warning Light, LED High Intensity Wind Turbine Obstruction Light White Color Obstacle Light

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-HI-B0
    Certification : CE, RoHS, ICAO, ISO9001, IP66
    Price : 1500-2500USD/PC
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 pieces per month
    Delivery Time : 5 days
    • Product Details
    • Company Profile

    FAA L857 Warning Light, LED High Intensity Wind Turbine Obstruction Light White Color Obstacle Light

    FAA L857 Warning Light, LED High Intensity Wind Turbine Obstruction Light White Color Obstacle Light


    This High-intensity Type B Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.
    Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance. Self-designed reflection board ensure less LED could emitting brighter light.

    Compliance
    ** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type B Obstruction Light
    ** FAA L-857


    Electrical
    * CREE ultra high intensity LED as light source saving power
    * Power supply available in DC(48V) or AC(110V, 240V)
    Physical
    * Unique design and UV protected polycarbonate lens for converging
    light and saving LED power
    * UV protection Powder coated bright yellow color base make better visibility
    * Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
    * Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light
    System design
     Built-in photocell for day/twilight/night operation
     Surge and lightning protection
    Optional
     Alarm contact for remote monitoring
     Infrared LED for pilot using NVG
     RS485 communication part for monitoring
     User adjustable flashing rate(40, 50, 60 flashes/minute)
     GPS synchronization


    Application
    AH-HI-B0 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM,Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place

    More detailed parameter:


    SPECIFICATIONSAH-HI-B0 LED High-intensity Aviation Obstruction Light
    Light Characteristics
    Light SourceCREE high intensity LED
    Available ColorsWhite
    Intensity(cd)≥100,000cd(Daytime)
    ≥20,000cd(Twilight)
    ≥2,000cd(Night)
    Horizontal Output(degrees)120
    Vertical Divergence(degrees)3-7
    Flash Characteristics40-60FPM(40fpm as factory setting)
    Operation Mode24hours operation, 3 different modes
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating VoltageDC(48VDC) or AC(110, 240V) or others
    Average Power(W)40W(24hours working)
    Circuit ProtectionIntegrated
    Physical Characteristics
    Body MaterialPolycarbonate
    Base MaterialPowder coated die-casting aluminum
    Mounting470×120×θ12
    Dimension(mm)510×196×245
    Weight(kg)9
    Product Life Expectancy5 years Plus
    Environmental Factors
    Humidity0%-100%
    Wind Speed80m/s
    WaterproofIP67
    Compliance
    ICAOAnnex 14 Volume 1,'Aerodrome Design and
    Operations’ Seventh edition 2016, table 6.3
    High-intensity Type B White Obstacle Light
    FAAL-856, L-857
    Options Available
    NVG(Night Vision Goggles) compatible LED
    GSM Monitoring

    GPS Sync Flashing


    Dry Contact alarm(NO COM NC)
    User adjustable flashing rate (40, 50, 60)
    Solar power system

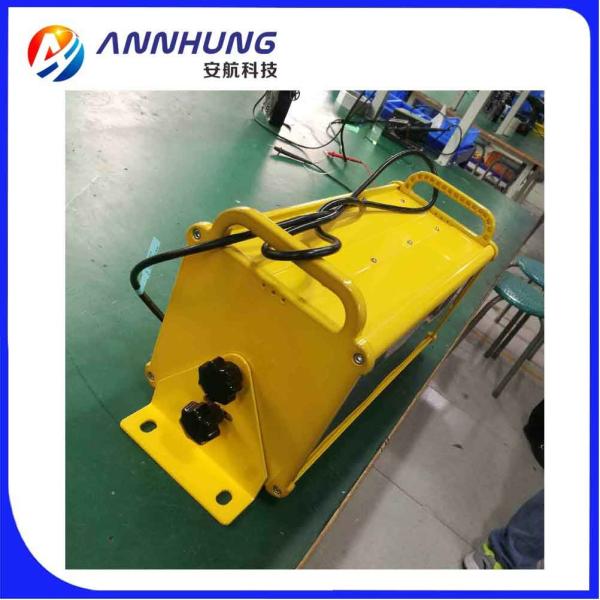

    Light photo:


    FAA L857 Warning Light, LED High Intensity Wind Turbine Obstruction Light White Color Obstacle Light


    Contact us:


    FAA L857 Warning Light, LED High Intensity Wind Turbine Obstruction Light White Color Obstacle Light

    Datasheet download: download AH-HI-B0 LED High-intensity Aviation Obst...
