    Red / Green / White Helicopter Approach Path Indicator CHAPI 24hours Operation

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-HP-CHAPI
    Certification : CE
    Payment Terms : T/T, Western Union
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Red / Green / White Helicopter Approach Path Indicator CHAPI 24hours Operation

    AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators


    The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.

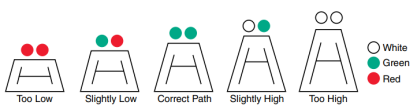

    CHAPI Visual Indication:



    Compliance

    ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1

    FAA AC 150/5390-2B Heliport Design Guide


    Features

    Electrical

    LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

    Power supply available in AC(110, 240VAC), DC48V or others


    Physical

    Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.

    Fragile coupling reduce the secondary damage to helicopters effectively


    Optional

    Clinometer

    Solar power system


    Application

    Permanent, Temporary, Emergency Helipad/Airport/Helideck

    OFFSHORE/ ONSHORE USAGE


    DescriptionParameter
    Light SourceLED
    Flash Characteristics

    Steady burning

    Operation Mode

    24hours operation

    LED Life Experience(hours)>100,000

    Operating Voltage

    AC220V

    Power(W)

    50
    Mounting

    140x M10

    Dimension(mm)

    455x520x184

    Weight(kg)

    10

    Ambient Temperature(℃)

    -35~80

    Humidity

    10~90%

    Wind Speed80m/s
    WaterproofIP65

    Options Available

    Wireless Remote Control


    Heliport light
    Airport light
    Airport led light
    Helipad light
