    Helipad Solar Airfield Taxiway Lighting Runway Edge 12cd

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-SA-B
    Certification : CE
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Helipad Solar Airfield Taxiway Lighting Runway Edge 12cd

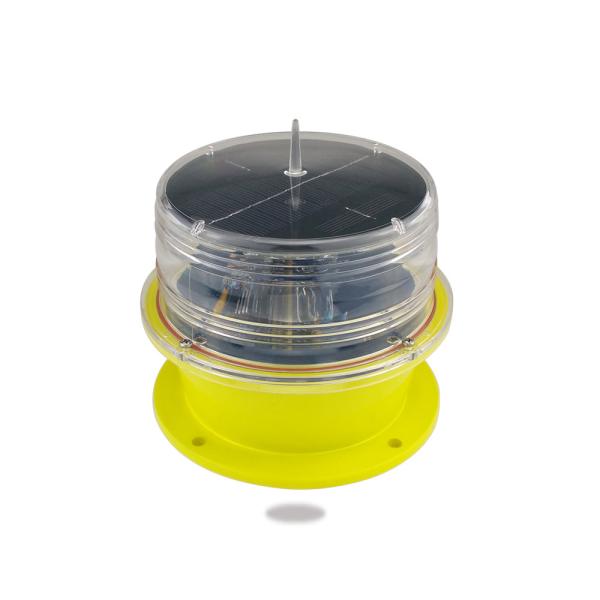

    AH-SA-B Solar Airfield Light

    AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.


    Compliance

    ICAO Annex 14 Volume ǁ Heliports 5.3.

    FAA AC 150/5390-2B Heliport Design Guide

    CAP 437


    Features

    Electrical

    LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light


    Physical

    Bird deterrent spike

    Powder coated die casting aluminum base

    Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon


    System design

    ON/OFF button interface located under base

    Optional

    External battery charger for 110-240vac charging

    Wireless remote control


    Application

    Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting

    Helipad taxiway


    Helipad Solar Airfield Taxiway Lighting Runway Edge 12cd


    DescriptionParameter
    Light SourceLED
    Flash Characteristics

    Steady burning

    Operation Mode

    24hours operation

    LED Life Experience(hours)>100,000
    Battery typeLithium ion battery
    Solar Module TypeMono crystalline Silicon
    Mounting

    140×140×M6

    Dimension(mm)

    162×162×160

    Weight(kg)

    1

    Ambient Temperature(℃)

    -55~70

    Humidity

    0~100%

    Wind Speed

    80m/s

    WaterproofIP68

    Options Available

    Photocell for day/night operation


    Company Information

    Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


    Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
