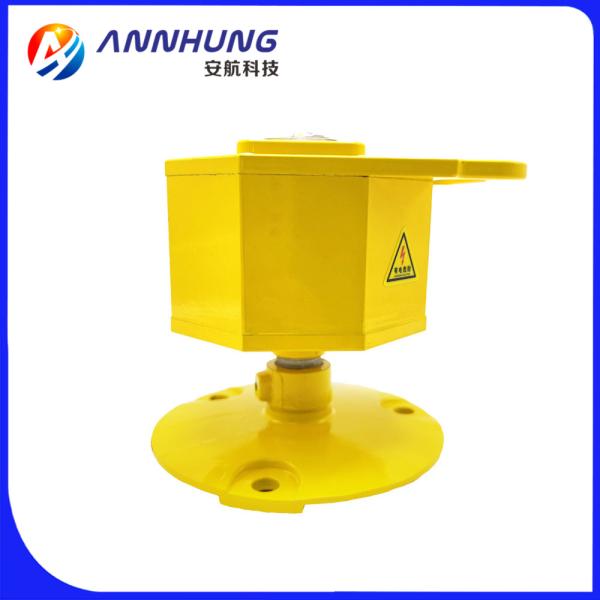

LED Heliport-Helideck Elevated Light Touchdown and lift-off area
lighting
Heliport Elevated lights should not exceed a height of 25cm for
Surface-level and Elevated heliports, not exceed a height of 15 cm
for helideck. There is a fragile coupling in the base connection
for heliport so if aircraft hit the light by accident, the base
will break immediately to avoid more damage.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
High-intensity CREE LED as light source saving power consumption
and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other
voltage is optional
Physical
Unique designed Glass lens for converging light
Powder coated bright yellow color base make better visibility
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
Application
Surface-level and Elevated heliports
HelideckShipboard heliports
Anhang Technology is a speciallized enterprise focusing on reseach,
production, sales and after-sales service of aviation obstruction
light, aircraft warning light, helipad lighting, solar airfield
lights, marine navigation lanterns. Our factory located in Shenzhen
City, China and have more than 10 years manufacturing experience
for clients from whole world. Our products are patented and also
have passed CE, ICAO, ISO9001, etc. All aviation obstruction light,
aircraft warning lights, helipad lighting, solar airfield lights
are fully complied with standards of ICAO ( International Civil
Aviation Organization), FAA (Federal Aviation Administration), CAAC
( Civil Aviation Administration of China ). All marine navigation
lanterns are fully complied with standards of IALA (International
Association of Lighthouse Authorities). Till now, we’ve got eight
software copyright, nine design patent and two utility model
patent.
Our products are widely used in Civil Airports, Helipads,
Communication Towers, Factory, Power Plant Chimneys, Television
Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
Advanced technolgy like LED(light-emitting diode), Solar Clean
Power, GSM SIM Card Monitoring, GPS Time Synchronization
technology, Blutooth, Wireless Remote Control and etc. applied in
our products. All material are UV protected and anti-corrosion and
the lowest water proof is IP65 which is to make sure lights could
be used outside for long time.
