    FAA obstruction lighting Low Intensity L810 Single Aviation Obstruction Light AH-LI-B2

    Ask Lasest Price
    Brand Name : Annhumg
    Model Number : AH-LI-B2
    Certification : FAA
    Price : $50.00 - $65.00
    Supply Ability : 1000 Piece/Pieces per Month
    Delivery Time : 3-15days
    • Product Details
    • Company Profile

    FAA obstruction lighting Low Intensity L810 Single Aviation Obstruction Light AH-LI-B2

    Product Description

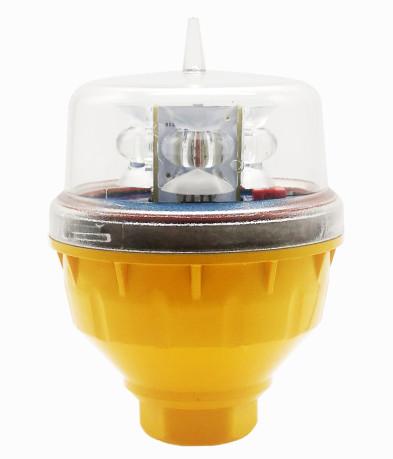

    AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light
    This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height
    Specification
    SPECIFICATIONS
    AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light
    Light Characteristics
    Light Source
    LED
    Available Colors
    Red
    Intensity(candela)
    ≥32.5cd(type B),others optional(10cd, 100cd,etc)
    Horizontal Output(degrees)
    360
    Vertical Divergence(degrees)
    ≥10
    Flash Characteristics
    Steady-burning/20/30/60 adjustable
    Operation Mode
    Dusk-to-dawn Automatically as standard.
    LED Life Experience(hours)
    >100,000
    Electrical Characteristics
    Operating Voltage
    DC(12V, 48VDC) or AC(110-240VAC) or others
    Power(W)
    2.5
    Lightning surge
    IEC61000-4-5 L- N ±3kV
    IEC61000-4-5 L- PE ±6kV
    IEC61000-4-5 N- PE ±6kV
    Electrostatic
    IEC61000-4-2 Contact discharge 8kV
    Circuit Protection
    Integrated
    Physical Characteristics
    Body Material
    Polycarbonate
    Base Material
    Die-casting aluminum
    Mounting
    3/4 inch pipe thread as standard. 1inch as option
    Dimension(mm)
    Φ90×130
    Weight(kg)
    0.3
    Product Life Expectancy
    10 years Plus
    Environmental Factors
    Ambient Temperature(℃)
    -55℃~+70℃
    -40~75
    Storage temperature(℃)
    -55~70
    Humidity
    10%-95%RH(No condensation)
    Wind Speed
    130m/s
    Waterproof
    IP66
    Compliance
    ICAO
    Annex 14 Volume 1,'Aerodrome Design and
    Operations’ Seventh edition July 2016, table 6.3
    Low-intensity Type A/B/E Obstacle Light
    FAA
    L-810
    Options Available
    Flashing rate
    NVG(Night Vision Goggles) compatible LED
    Dry contact alarm(NO COM NC)
    GPS sync flashing
    Packing & Delivery
    Company Profile
    Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after-sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys,Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website:www.annhung.com www.ahicao.com
    FAQ
    1.Can I have a sample order for obstruction light?
    Yes, we welcome sample order to test and check quality.

    2.What about the lead time?
    Sample needs 1-3 days, mass production needs 1-2 weeks for order quantity more than 100 units.

    3.Do you have any MOQ limit for aviation obstruction light order?
    Low MOQ, 1pc for sample checking is available.

    4.How do you ship the goods and how long does it take to arrive?
    We usually ship by DHL, UPS, FedEx or TNT. It normally takes 3-5 days to arrive. Airline and sea shipping also optional.

    5.How to proceed an order for obstruction light?
    Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly
    customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

    6.Is it ok to print my logo on led obstruction light product?
    Yes. Please inform us formally before our production and confirm the design firstly based on samples.

    7.Do you offer guarantee for the products?
    Yes, we offer 3-5 years warranty to our products.
