    LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-HP-CHAPI
    Certification : ICAO CE
    Payment Terms : L/C, T/T
    Delivery Time : 10-30 work days
    • Product Details
    • Company Profile

    LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning

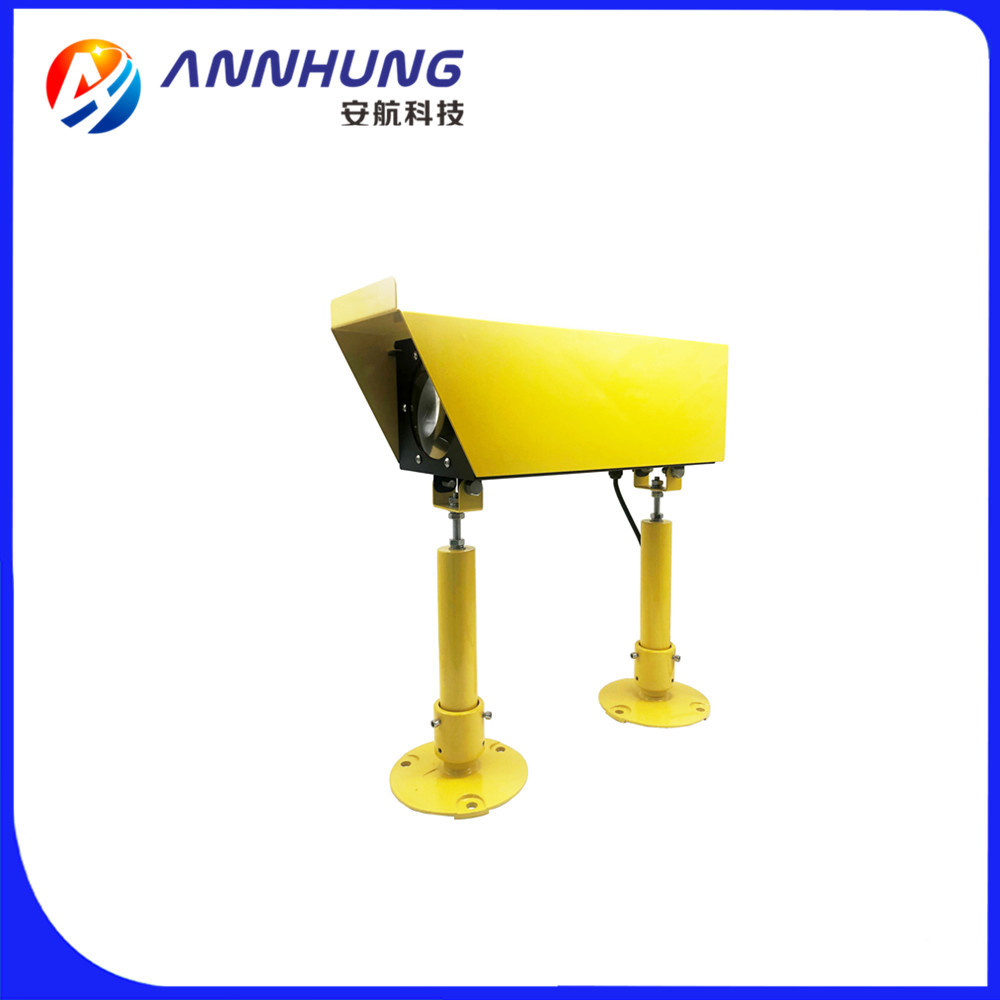

    AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators
    The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.
    CHAPI Visual Indication:
    Compliance
    ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
    FAA AC 150/5390-2B Heliport Design Guide
    Features
    Electrical
    LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light Power supply available in AC(110, 240VAC), DC48V or others
    Physical
    Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
    UV protection Powder coated bright yellow color base make better visibility
    Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
    Fragile coupling reduce the secondary damage to helicopters effectively
    Optional
    Clinometer
    VHF pilot to ground remote control
    Wireless Remote Control
    Application
    Permanent, Temporary, Emergency Helipad/Airport/Helideck
    OFFSHORE/ ONSHORE USAGE
    DescriptionParameter
    Product name
    HAPI Heliport Approach Path Indicators
    Body Material
    Stainless steel
    Leg material
    Die casting aluminum
    Mounting
    140x M10
    Dimension(mm)
    455x520x184
    Weight(kg)
    10
    Life Period
    ≥10years
    Ambient Temperature(℃)
    -35~80
    Humidity10~90%
    Wind Speed80m/s
    Waterproof
    IP65

    LED CHAPI 24 Hours Operation Helipad Landing Lights Steady Burning


    Company Information

    Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


    Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
