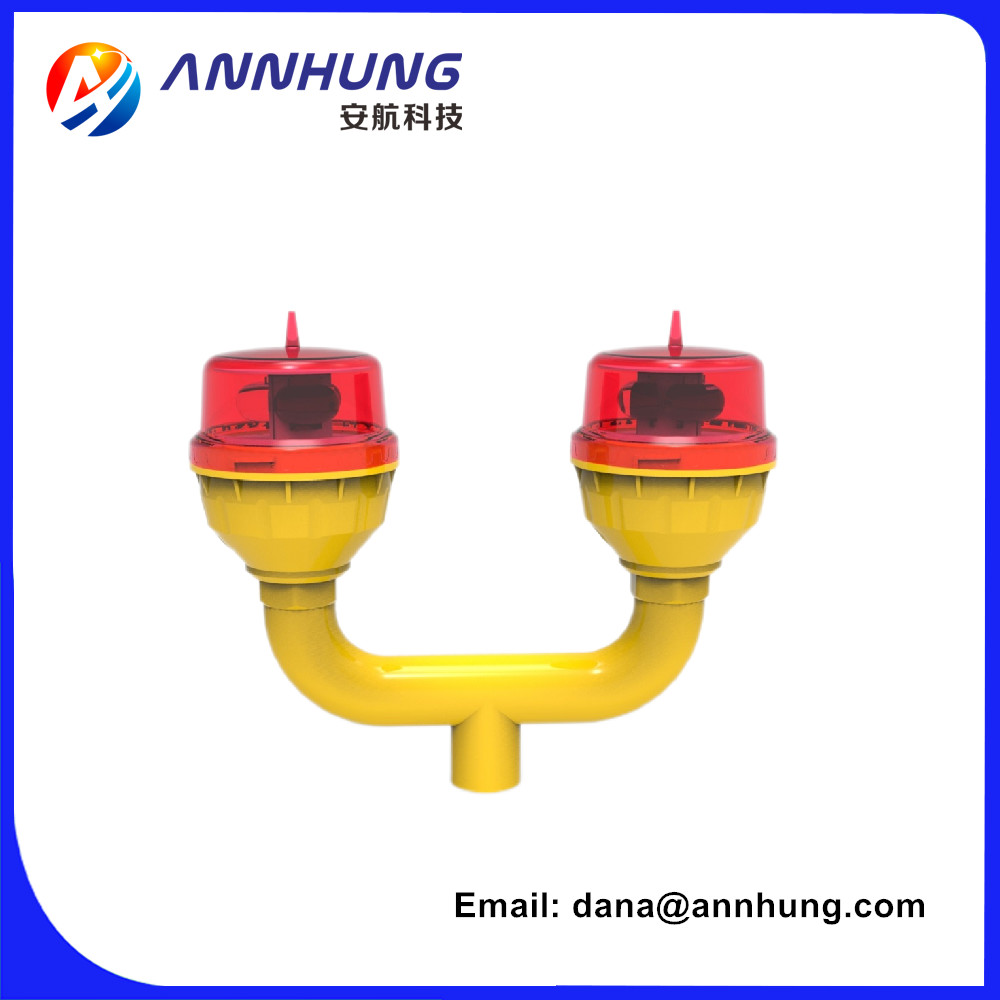

This LED Low-intensity Double light is a steady burning
(20/30/60fpm is adjustable) aviation obstruction light designed for
marking top of obstacle that do not exceed 45 meters in height.
Main-standby mode ensure the obstacle is always marked even one
light fail.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low
Intensity Type A / B /E Obstruction Light
FAA L-810
Features
Electrical
CREE LED, make sure LED keep bright while use for long time
Power supply in DC(48V)& AC(110-240VAC), the light could work
normally when input 48VDC/110VAC/240VAC
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good
transparency
High translucency and anti-UV polycarbonate cover could use
3-5years without yellowing
UV protection Powder coated bright yellow color base make better
visibility and also long life in harsh environments()
Base material is die casting aluminum which has strong corrosion
resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy
No screw fix type - just twist, the cover will be fixed tightly
System design
Built-in photocell for day/night operation(dusk to dawn
operation,automatically turn on when background luminance is below
50cd/m2
Steady/20FPM/30FPM/60FPM DIP switches on PCB
Surge and lightning protection
Main-standby mode, when the main light fail, the standby light
automatically switch on to ensure the obstacle is always clearly
marked.
Optional
Infrared LED for pilot using NVG
Alarm contact output (Dry contact- NO COM NC), When power failed
alarm generate & also when LED fails alarm generated
Solar power system
Application
AH-LI-D2 low-intensity light could be used alone on the top of the
High-rise Building, High Chimney, marking towers (Telecom,
GSM,Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when
the height is lower than 45m.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics | Steady-burning/20/30/60 adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | DC(12V, 48VDC) or AC(110-240VAC) or others |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | ≥10 |
Intensity(cd) | ≥32.5cd(type B),others optional(10cd, 100cd,etc) |
| Ambient Temperature(℃) | -40~65 |
| Storage temperature(℃) | -55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof | IP66 |
| FAA | L-810 |
