    TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-SA-B
    Certification : ICAO CE
    Payment Terms : T/T, Western Union
    Supply Ability : 2000Pieces for one month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S

    FATO Taxiway lighting Runway edge lighting TLOF Solar Airfield Light

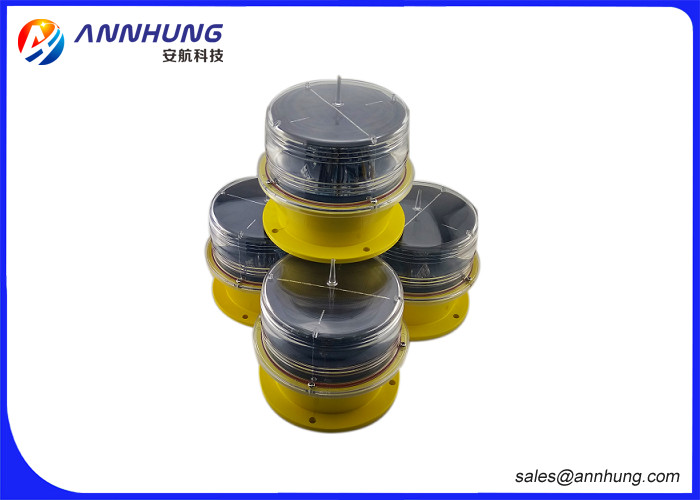

    AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.
    Compliance
    ICAO Annex 14 Volume ǁ Heliports 5.3.
    FAA AC 150/5390-2B Heliport Design Guide
    CAP 437
    Features
    Electrical
    LED as light source saving power consumption and maintenance,95% less power than equivalent incandescent light
    Physical
    Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
    PC housing,UV resistance, shockproof and corrosion proof.
    Bird deterrent spike
    Powder coated die casting aluminum base
    Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
    System design
    ON/OFF button interface located under base
    Optional
    External battery charger for 110-240vac charging
    Wireless remote control
    NVG - compatible infrared (IR) LED
    Installation bracket
    Application
    Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting,
    Portable or expedited airfield lighting, Threshold lighting
    Helipad taxiway
    Emergency operations
    DescriptionParameter
    Light SourceLED
    Available Colors
    Red, Green, Yellow, White, Blue
    Flash CharacteristicsSteady
    LED Life Experience(hours)>100,000
    Operation Mode
    24hours working after switched ON
    Lamb Body Material
    Aluminum Alloy
    Base Material
    Powder-coated Die-casting aluminum
    Weight(kg)1
    Product Life Expectancy≥10 years
    Storage temperature(℃)-55~70
    Humidity0~100%
    Wind Speed80m/s
    WaterproofIP68
    ICAO
    Annex 14 Volume ǁ Heliports 5.3

    Product datasheet download: download AH-SA-B Solar Airfied Light.pdf


    TLOF 12cd Runway Edge Lighting Portable Airfield Silicon Solar 80m/S


    Company Information

    Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


    Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
