    NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity

    Ask Lasest Price
    Brand Name : Annhung
    Model Number : AH-HI-A0
    Certification : CE, RoHS,ICAO
    Payment Terms : T/T, Western Union, D/P
    Supply Ability : 1000pieces for one month
    Delivery Time : 7-15work days
    • Product Details
    • Company Profile

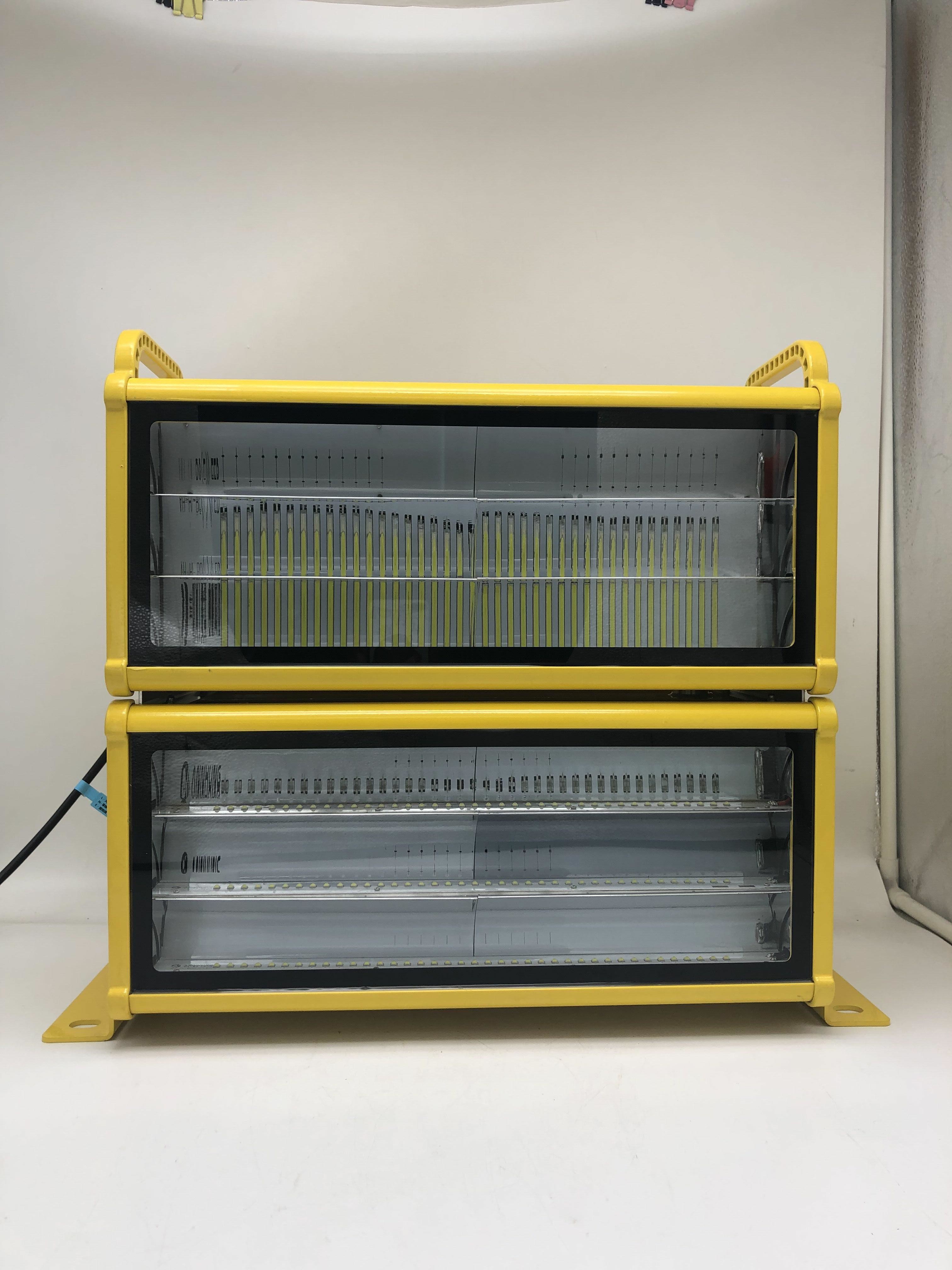

    NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity

    High-intensity Type A Aviation Obstruction Light GPS SNYC 40-60FPM


    This High-intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.
    Compliance
    ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 High Intensity Type A Obstruction Light
    FAA L-856, L-857
    Features
    Electrical
    CREE ultra high intensity LED as light source saving power
    Power supply available in DC(48V) or AC(110V, 240V)
    Physical
    Unique design and UV protected polycarbonate lens for converging light and saving LED power
    UV protection Powder coated bright yellow color base make better visibility
    Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
    Special valve installed beside the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to destroy the light
    System design
    Built-in photocell for day/twilight/night operation
    Surge and lightning protection
    Optional
    Alarm contact for remote monitoring
    Infrared LED for pilot using NVG
    User adjustable flashing rate(40, 50, 60 flashes/minute)
    GPS synchronization
    Solar powered system
    Application
    AH-HI-A0 High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.
    DescriptionParameter
    Light Source
    CREE high intensity LED
    Operating Voltage
    DC(48VDC) or AC(110, 240V) or others
    Average Power(W)
    <76W(40fpm)
    Circuit Protection
    Integrated
    Body Material
    Polycarbonate
    Base Material
    Powder coated die-casting aluminum
    Mounting
    470×100×θ12
    Dimension(mm)
    508×186×236
    Weight(kg)
    10
    Humidity
    0%-100%
    Temperature(℃)
    -55˚C ~ 70˚C
    Wind Speed
    80m/s
    Waterproof
    IP66
    FAA
    L-856, L-857

    NVG Pilot LED Aviation Obstruction Light GPS SNYC 40-60FPM High Intensity


    Company Information

    Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


    Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
