LED Solar Powered Marine Lanterns Light Adjustable 366 IALA light
characteristics

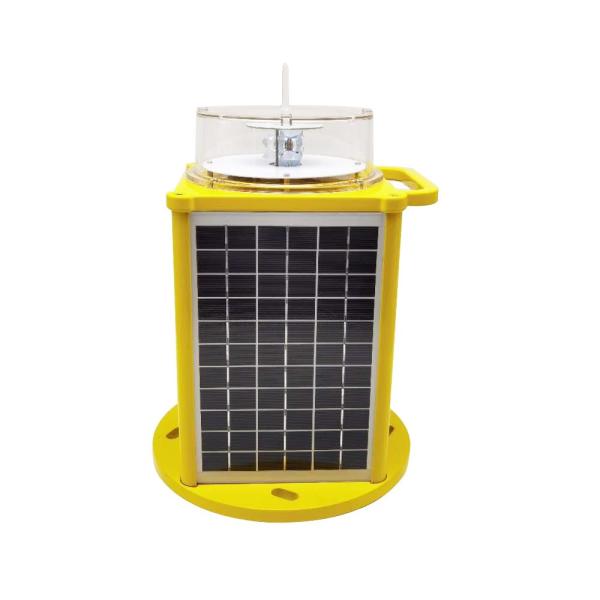

This LED Marine Lanterns is completely self-contained lantern. Four
(4) solar panels are integrated into the assembly and mounted to
collect sunlight at all angles.
CREE Ultra high intensity LED is used as light source which make
performance better.
There is no need to open the light, the light flashing
characteristics(IALA 366 flashes) could be remote controlled by IR
Programmer easily.
GSM Monitoring as optional function, when fault happens, it will
send out text message automatically.
Compliance
IALA E-200-1
Features
Electrical
Based on LED technology, and its color complies to IALA
Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
4-side mono crystalline silicon solar panel, conversion efficiency
is better than poly crystalline silicon
ON/OFF button interface
Bird spike could avoid the bird stop on the light
System design
Solar panel as photocell for day/night operation(dusk to dawn)
The flashing rate is adjust by IR programmer
Optional
External battery charger
GSM Monitoring
RS232/485 port
GPS Sync flashing
| SPECIFICATIONS | AH-ML-S7 LED Solar Powered Marine Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 3-7m (AT @0.74) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 8 |
| Flash Characteristics | Adjustable 366 IALA light characteristics |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 11.1Vdc |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 24 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery(other type is optional) |
| Battery Capacity (Ah) | Depends on different visible range |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3-5 years |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) | 200×200×Φ12
|
| Dimension(mm) | 250×250×420
|
| Weight(kg) | 7 |
| Product Life Expectancy | ≥10 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Temperature(℃) | -20~80 |
| Compliance | |
| IALA | Signal colors compliant to IALA E-200-1 |
| Options Available | |
| GSM Monitoring |
| RS232/485 port
|
| GPS Sync flashing |
| Charging port |
Application
AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any
other off shore site for marine/river safe navigation.
