    White 2500cd Solar Heliport Beacon Lighting Morse Code H 24hours Operation

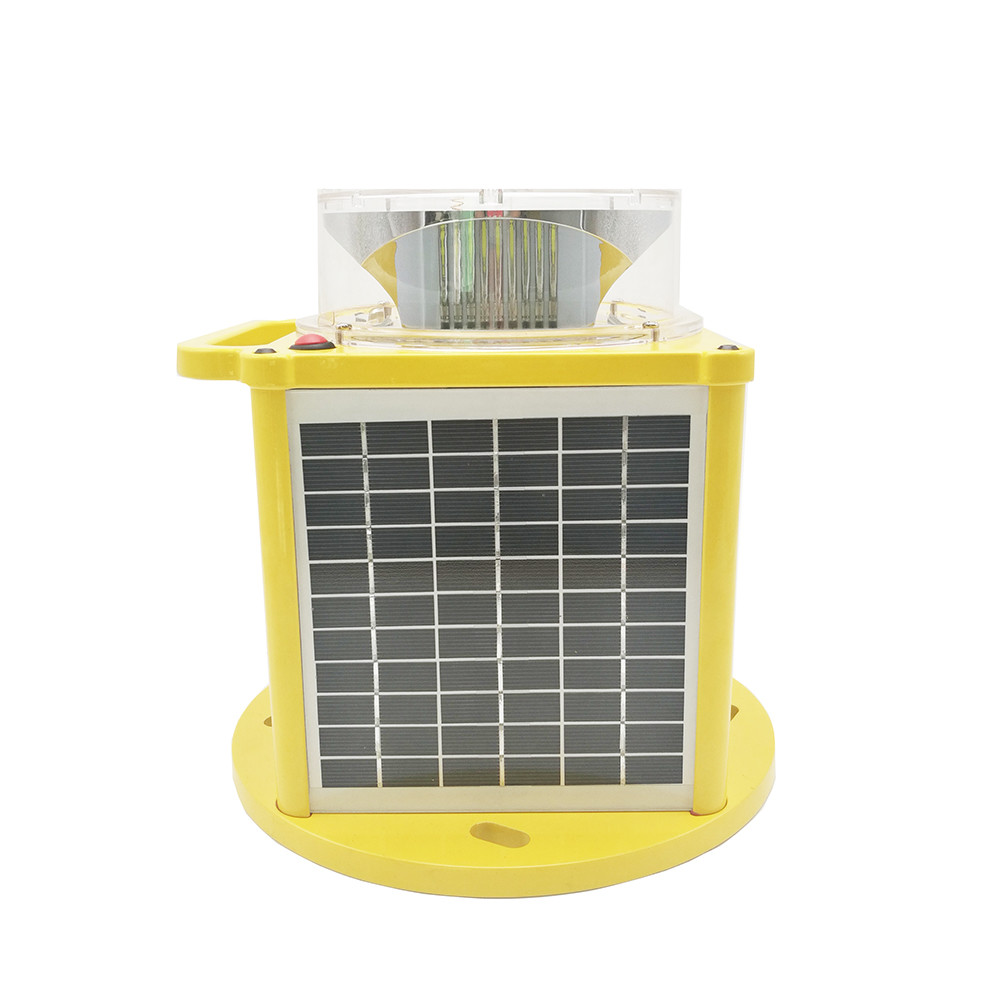

    AH-SA-HB LED Solar Heliport Beacon
    A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.
    AH-SA-HB flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ), built-in solar panel and battery, no wiring job is needed.
    Compliance
    ICAO Annex 14 Volume ǁ Heliports 5.3.2
    FAA AC 150/5390-2B Heliport Design Guide
    CAP 437
    Features
    Electrical
    LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
    Physical
    Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
    PC housing,UV resistance, shockproof and corrosion proof.
    UV protection Powder coated bright yellow color base make better visibility
    Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
    Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
    ON/OFF button interface for easy local control
    Optional
    External charger
    Wireless remote control
    Carry case for batch of lights
    NVG - compatible infrared (IR) LED
    Installation bracket
    Application
    Helipad/Heliport/Helideck/Airport
    DescriptionParameter

    Body Material

    UV protected Polycarbonate

    Base Material

    Powder-coated Die-casting aluminum

    Mounting

    200×200×12

    Dimension(mm)

    250×250×250

    Weight(kg)

    4.5

    Product Life Expectancy

    ≥10 years

    Ambient Temperature(℃)

    -35~80

    Humidity

    -10~90

    Wind Speed

    80m/s

    Waterproof

    IP68

    FAA

    FAA AC 150/5390-2B Heliport Design Guide

    White 2500cd Solar Heliport Beacon Lighting Morse Code H 24hours Operation
