2500cd Helipad Landing Lights White Available Colors LED Beacon

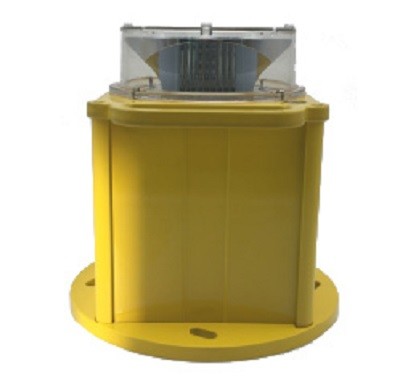

AH-HP-B2 LED Heliport Beacon

A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.

The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.

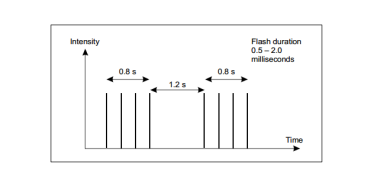

AH-HP-B2 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.2

FAA AC 150/5390-2B Heliport Design Guide

CAP 437

Features

Electrical

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Power supply available in DC(12, 48VDC) or AC(110-240VAC)

Physical

Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.

UV protection Powder coated bright yellow color base make better visibility

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

Optional

Controller for power supplying and turn ON/OFF light

VHF pilot to ground remote control

Application

Helipad/Heliport/Helideck

Anhang Technology is a Specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City,China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE,ICAO,FAA,CAAC,IALA,ROHS,ISO9001, ISO14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), FAA(Federal Aviation Administration)CAAC(Civil Aviation Administration of China).All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we've got 42+ patent certificates.

Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technology like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.

Our products are covered by a lifetime warranty. If the product ever fail in any way, we will repair or replace the item for as long as you own the product.
