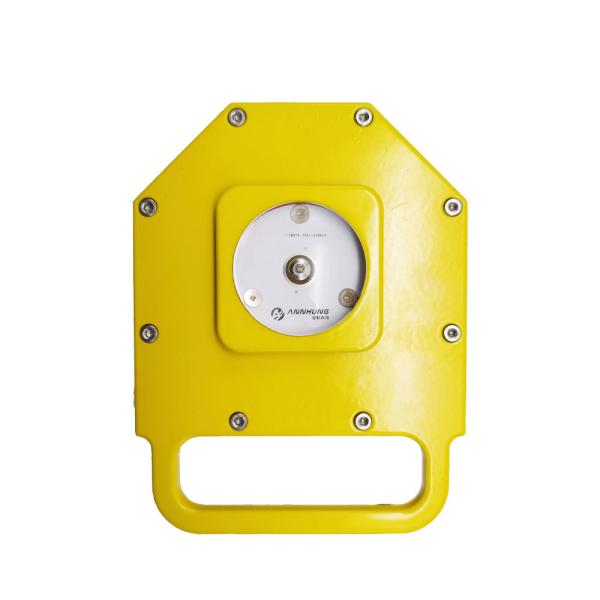

    110V 240VAC LED heliport airport beacon light Touchdown And Lift Off Area

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-HP-E-TLOF(L)
    Certification : ICAO CE
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 2000pcs per month
    Delivery Time : 3-15 work days
    • Product Details
    • Company Profile

    110V 240VAC LED heliport airport beacon light Touchdown And Lift Off Area

    110V 240VAC LED Heliport Airport Beacon Light Touchdown And Lift Off Area


    LED Heliport Touchdown and Lift-off Area Lighting


    A TLOF lighting system shall be provided at a heliport intended for use at night. TLOF perimeter lights shall be placed along the edge of the area designated for use as the TLOF or within a distance of 1.5 m from the edge.
    The TLOF perimeter lights shall be fixed omnidirectional lights showing green.


    Compliance

    ICAO Annex 14 Volume ǁ Heliports 5.3.

    FAA AC 150/5390-2B Heliport Design Guide

    CAP 437


    Features

    Electrical

    High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

    Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional

    LED power supply board includes short circuit and open circuit protection


    Physical

    Unique designed Glass lens for converging light

    Powder coated bright yellow color base make better visibility

    Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection


    Optional

    Infrared LED for pilot using NVG(Night Vision Goggles)

    Controller for power supplying and turn ON/OFF light

    VHF pilot to ground remote control

    Light intensity adjustable


    110V 240VAC LED heliport airport beacon light Touchdown And Lift Off Area


    Description

    Parameter

    Operating Voltage

    C48V and AC(110-240VAC), DC12V

    Power(W)

    5

    Circuit Protection

    Integrated

    Body Material

    UV protected Polycarbonate

    Base Material

    Powder-coated Die-casting aluminum

    Mounting

    140×140×θ12

    Dimension(mm)

    190×165×166

    Weight(kg)

    1.9

    Product Life Expectancy

    ≥10 years

    Ambient Temperature(℃)

    -55~70

    Humidity

    10~90%

    Wind Speed

    80m/s

    Waterproof

    IP66

    ICAO

    ICAO Annex 14 Volume ǁ Heliports 5.3
