20fpm Solar Powered Aviation Lights LED Aviation Obstruction Type

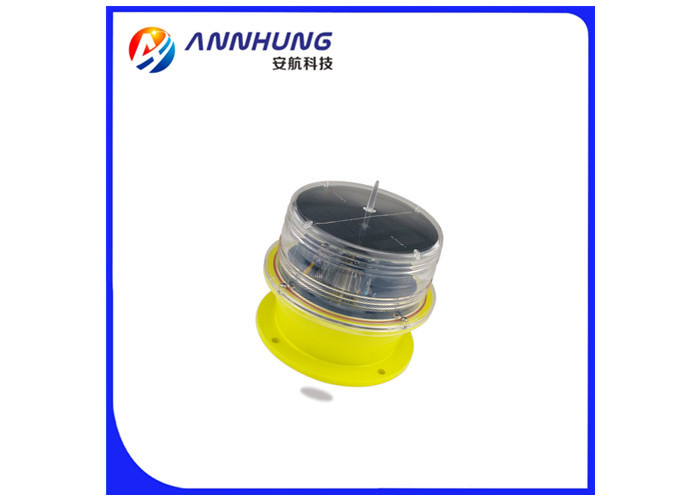

AH-LS-L LED Low-intensity L810 Solar Aviation Obstruction Light

This LED Low-intensity Solar Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. Built-in photocell ensure LED only working at night and closed in the daytime automatically.

It is designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstruction Light

FAA L-810

Features

Electrical

LED as light source, life experience >100,000hours

Physical

With bird needle to prevent bird drop

UV & vibrations protected polycarbonate lens for converging light

Powder coated die casting aluminum base, light fastness, resist snow and rain, salt atmosphere

Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

Built-in photocell (Photo diode) for day & night working mode (dusk to dawn mode)

ON/OFF button make local control easy

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)

GPS sync flashing

Application

AH-LS-L solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.

Used alone on the top of obstacle which height is less than 45meter
