    Medium Intensity Type B L864 Aviation Obstruction Light Gps Sync Flashing

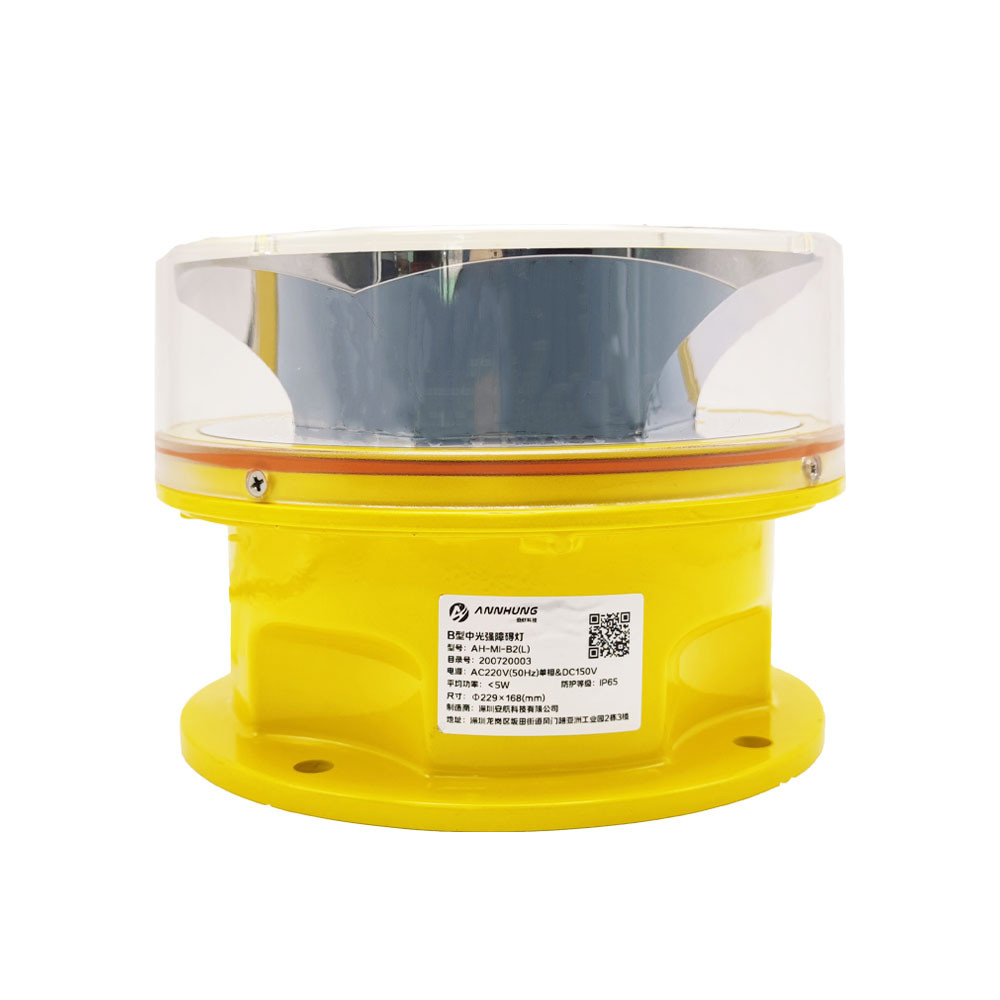

    AH-MI-B2(L) LED Medium-intensity Aviation Obstruction Light

    This LED Medium-intensity Type B L864 Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is more than 45meters.

    Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.


    DescriptionParameter
    Light SourceLED
    Flash Characteristics20fpm
    Operation ModeDusk-to-dawn Automatically as standard.
    LED Life Experience(hours)>100,000
    Operating Voltage110-240VAC, 48VDC, or others
    Power(W)40W
    Mounting190×190×θ12
    Dimension(mm)229×229×168
    Weight(kg)2.5
    Ambient Temperature(℃)-55~70
    Humidity10%-95%RH(No condensation)
    Wind Speed240Km/h
    WaterproofIP66
    Options AvailableBird deterrent spike

    Compliance

    ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Obstruction Light

    FAA L-864


    Features

    Electrical

    CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

    Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)


    Physical

    Unique design and UV protected polycarbonate reflector for converging light

    UV protection Powder coated bright yellow color base make better visibility


    System design

    Built-in photocell for day/night operation(dusk to dawn operation)

    Surge and lightning protection


    Optional

    Dry contact Alarm output for remote monitoring

    User adjustable flashing rate(20, 30, 40, 60 flashes/minute)

    GPS synchronization


    Application

    AH-MI-B2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
