Brand Name : | ANNHUNG |
Model Number : | AH-HP-E |
Certification : | ICAO |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Money Gram, L/C |
Supply Ability : | 1000 Pieces Per Month |
Delivery Time : | shipped in 15 days after payment |

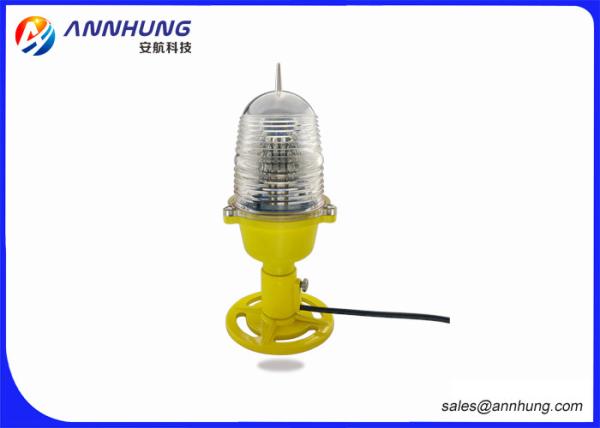

SPECIFICATIONS | AH-HP/E LED Elevated Perimeter light/ Helipad Flood Light |
Light Characteristics | |
Light Source | LED |
Available Colors | Green |
Intensity(cd) | ≥25cd |
Horizontal Output(degrees) | 360 |
Vertical Divergence(degrees) | >10 |
Reflector Type | Fresnel Lens |
Flash Characteristics | Steady-burning |
Operation Mode | Dusk-to-dawn Automatically as standard. 24hours operation as option. |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics | |
Operating Voltage | AC220V, 50/60 Hz (Option voltage, eg.AC120V,DC48V) |
Power(W) | 20 |
Circuit Protection | Integrated |
Temperature Range(℃) | -55~70 |
Physical Characteristics | |
Body Material | Polycarbonate |
Base Material | aluminum |
Mounting | Φ93 by 12 |
Height(mm) | 136 |
Width(mm) | 136 |
Depth(mm) | 280 |
Mass(kg) | 1.4 |
Product Life Expectancy | 5 years plus |
Environmental Factors | |
Humidity | 10%-95% |
Wind Speed | 80m/s |
Waterproof | IP65 |
Compliance | |
ICAO | Low-intensity Solar-Powered Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
FAA | Low-intensity Type A or Type B FAA L-810 |
![]() |
