High-intensity Type A L856 Aviation Obstruction Light Flashing 40-60 FPM

Advantages

1 . Strong efficiency transmission.
2 . International-advanced Big power and Precision integrated chip LED with high brightness and service life of light source reaching 100000hours.
3 . The circuit of the light has overload protection whose lightning proof ability is In
7 . 5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
4 . Strong anticorrosion, anti seisnic protection and UV protection.
5 . Baked advance aluminum alloy Material.
6 . Resistant to heavy rain or storms.
7 . Automatically changing light intensity, day/twilight/night intensity operating.
8 . low power consumption and low cost of ownership.

Detail Description:

The products are one Single light with photocell, so it can work all day andautomatically change light intensity according to ambient brightness by photocell. When ambient brightness is less than 50cd/m2,light intensity is 2,000cd(±25%);When ambient brightness is between 50cd/m2 and
500cd/m2,light intensity is 20,000cd(±25%) ;When ambient brightness is morethan 500cd/m2,light intensity is 200,000cd(±25%). All control signal wire of light is paralleled to make several lights flash synchronously.

Application:

This product is mainly used on the top of Television transmitting tower, High-rise building, High chimney, cable stayed bridge,communications Tower, Cooling tower, etc which height is over 150meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.

Specifications:

Dimension Drawing

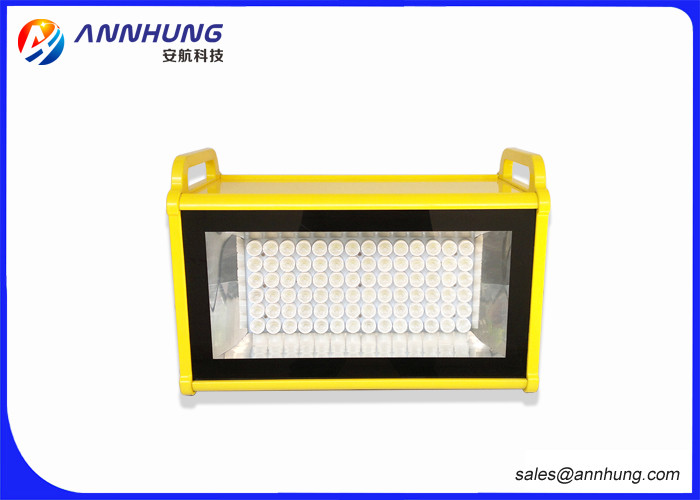

Product Picture

Anhang Technology is a Specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City,China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE,ICAO,FAA,CAAC,IALA,ROHS,ISO9001, ISO14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), FAA(Federal Aviation Administration)CAAC(Civil Aviation Administration of China).All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we've got 42+ patent certificates.

Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technology like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.

Our products are covered by a lifetime warranty. If the product ever fail in any way, we will repair or replace the item for as long as you own the product.
