    Standby Solar Aviation Obstruction Light , Low - Intensity Double Solar Airfield Lighting

    Ask Lasest Price
    Brand Name : Annhung
    Model Number : AH-LS/T
    Certification : CE, ISO9001, ICAO
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000 pieces per month
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Standby Solar Aviation Obstruction Light , Low - Intensity Double Solar Airfield Lighting

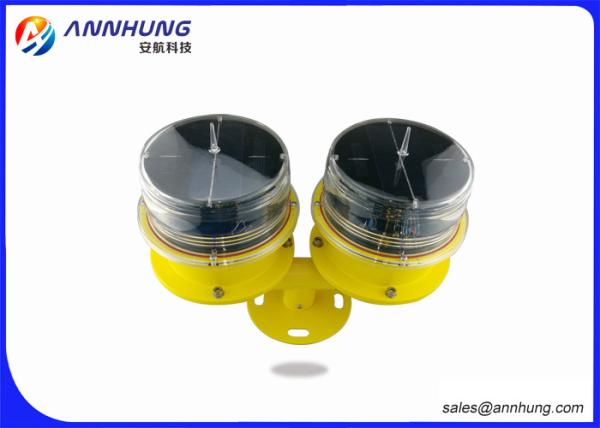

    Low-intensity L810 Double Solar Aviation Obstruction Light Standby Light

    This LED Low-intensity Solar-Powered Aviation Obstruction light is adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. There are two lamps on two arms, one is main lamp, another is standay. When main lamp fail, standby light turn on automatically.3/4inch thread hole underbase is very suitable for pole mounting.


    Function

    Solar panel inside light also act as photocell sensor.It will make
    light work automatically at night when ambient brightness is lower than
    500cd/m2 and close during the day

    Product Descripton

    SPECIFICATIONSAH-LS/T Low-intensity Double Solar Aviation Obstruction Light
    Light Characteristics
    Light SourceLED
    Available ColorsRed. Other colors are available if need, including IR
    Intensity(cd)32.5cd
    Horizontal Output(degrees)360
    Vertical Divergence(degrees)≥10
    Flash CharacteristicsSteady & Flashing adjustable
    Operation ModeDusk-to-dawn Automatically as standard.
    24hours operation as option
    Main-standby mode
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating Voltage3.7Vdc
    Power(W)1
    Circuit ProtectionIntegrated
    Solar Characteristics
    Solar Module TypeMonocrystalline Silicon
    Output(watts)0.55
    Charging RegulationMicroprocessor controlled
    Battery Characteristics
    Battery typeLithium ion battery
    Battery Capacity (Ah)8
    Nominal Voltage (V)3.7
    Battery Service LifeAverage 3 years
    Autonomy (hours)Steady: 85
    Flashing: 190
    Physical Characteristics
    Lamb Body MaterialAluminum Alloy
    Base MaterialPowder-coated Die-casting aluminum
    Installation Size(mm)140×140×M6
    Overall Size(mm)162 by 162 by 160
    Weight(kg)3
    Product Life ExpectancyAverage 5 years
    Environmental Factors
    Humidity0~100%
    Wind Speed80m/s
    WaterproofIP68
    Compliance
    ICAOAnnex 14 Volume 1,'Aerodrome Design and
    Operations’ Forth edition July 2004, table 6.3
    FAALow intensity Type B FAA L-810
    Options AvailableCharging port
    Remote Control
    Flashing rate
    Auto/Manual toggle switch
    Powder-coated color
    NVG(Night Vision Goggles) compatitble LED

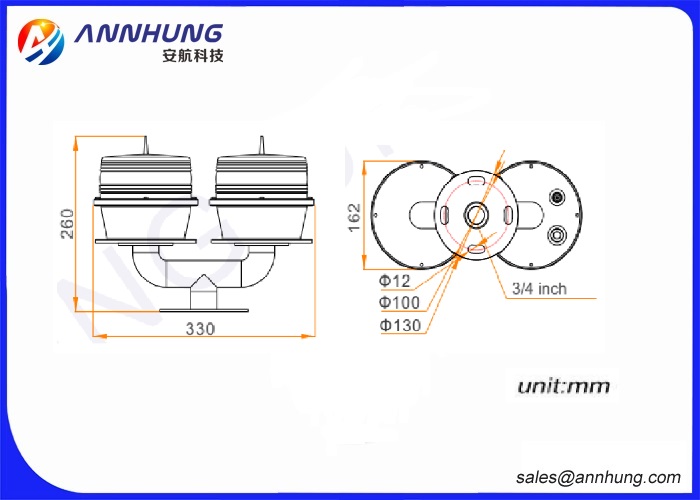

    Dimension Drawing



    Packaging & Delivery

    Packaging - Paper carton 1-9 piece/box.
    Delivery - In 2-15 days after payment.

    After-sales service

    1. 2 years full warranty, 5 years maintenance since the purchasing date.
    2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.
    3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
