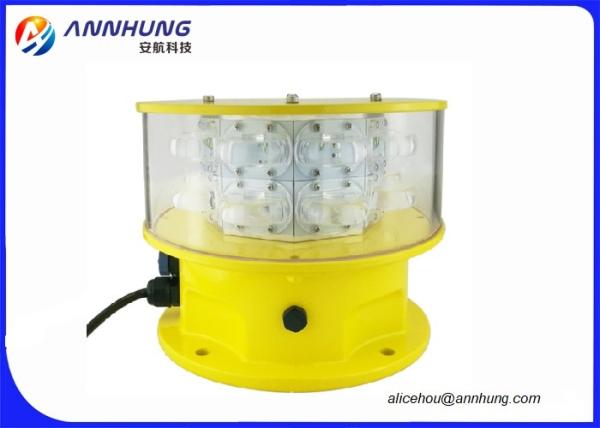

Medium-intensity Type B L864 Double Aviation Obstruction Light

This Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is between 45 to 105 meters.

Main-standby mode ensure the obstacle is always marked
even one light fail. Because when main top main lamp fail, down standby lamp will turn on automatically.

Compliance

ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light

FAA L-864

Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

Power supply available in DC(12-48VDC) or AC(110-240VAC)

System design

Built-in photocell for day/night operation(dusk to dawn operation)

Surge and lightning protection

Main-standby mode

Optional

Alarm contact for remote monitoring

Infrared LED for pilot using NVG

GSM cellphone monitoring

RS485/232 communication part for monitoring

User adjustable flashing rate(20, 30, 40, 60 flashes/minute)

GPS synchronization

Application

AH-MI/DO medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.

Packaging & Delivery

Packaging: Plastic bag with paper carton.

Delivery: In 2-20 days after payment.

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.

Anhang Technology is a Specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City,China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE,ICAO,FAA,CAAC,IALA,ROHS,ISO9001, ISO14001, ISO 45001etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), FAA(Federal Aviation Administration)CAAC(Civil Aviation Administration of China).All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we've got 42+ patent certificates.

Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technology like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.

Our products are covered by a lifetime warranty. If the product ever fail in any way, we will repair or replace the item for as long as you own the product.
