    L865 Medium-Intensity Aviation Obstruction Light Flashing White Color 24 Hours

    Ask Lasest Price
    Brand Name : Annhung
    Model Number : AH-MI/A-1
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 pieces per month
    Delivery Time : 2-50 days
    • Product Details
    • Company Profile

    L865 Medium-Intensity Aviation Obstruction Light Flashing White Color 24 Hours

    L865 Medium-intensity Type A White Aviation Obstruction Light


    This Medium-intensity Type A Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle which height is between 105 to 150 meters. Ultra high intensity CREE LED is used for the light source ensure light’s long life experience and good performance.


    Product Application


    -High-rise Building

    -High Chimney

    -marking towers (Telecom, GSM, Microwave & TV)

    -High Pole

    -Tower Crane

    -Wind Turbinebridge

    -large-scale port machinery

    -large engineer machinery

    -wind turbines


    Packaging & Delivery


    Packaging: Paper carton 1-9 piece/box.

    Delivery: In 2-10 days after payment.


    After-sales service


    1. 2 years full warranty, 5 years maintenance since the purchasing date.

    2.Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

    3.Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.


    Product Descripton


    SPECIFICATIONSAH-MI/A-1 Medium-intensity Type A Aviation Obstruction Light
    Light Characteristics
    Light SourceCREE high intensity LED
    Available ColorsWhite
    Intensity(cd)20000cd±25%(Daytime)
    2000cd±25%()
    Horizontal Output(degrees)360
    Vertical Divergence(degrees)3
    Flash Characteristics40-60 flashes per minuite
    Operation Mode24hours operation
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating VoltageDC(12-48VDC) or AC(110-240VAC)
    Power(W)15(Daytime)
    10(Night)
    Circuit ProtectionIntegrated
    Physical Characteristics
    Body MaterialPolycarbonate (High borosilicate glass
    as optional)
    Base MaterialDie-casting aluminum
    Mounting190×190×θ12
    Dimension(mm)236×236×190
    Weight(kg)5
    Product Life Expectancy5 years Plus
    Environmental Factors
    Humidity0%-100%
    Wind Speed80m/s
    WaterproofIP66
    Compliance
    ICAOAnnex 14 Volume 1,'Aerodrome Design and
    Operations’ Sixth edition 2016, table 6.3
    Medium-intensity Type A White Obstacle Light
    FAAL-865
    Options Available
    Powder-coated color
    NVG(Night Vision Goggles) compatitble LED
    GSM Monitoring

    GPS Sync Flashing


    Dry Contact alarm(NO COM NC)
    User adjustable flashing rate (40, 50, 60)

    Dimension Drawing


    L865 Medium-Intensity Aviation Obstruction Light Flashing White Color 24 Hours

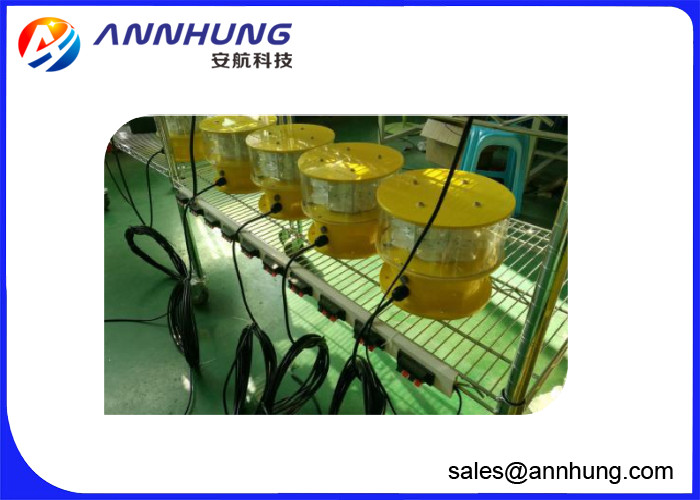

    Product Picture


    L865 Medium-Intensity Aviation Obstruction Light Flashing White Color 24 Hours
