    White Medium-intensity Type B Solar Powered Aviation Light for High Building

    Ask Lasest Price
    Brand Name : Anhang
    Model Number : AH-MS/B
    Certification : ICAO
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000 pcs per month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    White Medium-intensity Type B Solar Powered Aviation Light for High Building


    White Medium-intensity Type A Solar Powered Aviation Light for High building


    System design

    l Solar panel as photocell for day & night working mode (dusk to dawn mode)

    l Interface ON/OFF button is more reliable and easy for local control

    Optional

    l GPS Synchronization

    l GSM cellphone monitoring

    l Infrared LED for pilot using NVG

    l Remote control ON/OFF

    l External battery charging port


    Datasheet: AH-MS-B Medium-intensity Type B L864 Solar Aviatio...


    Application

    l AH-MS/B solar medium-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and mostly come with the low intensity lights which are installed at lower place



    Specifications:


    SPECIFICATIONSAH-MS/B Medium-intensity Type B L864 Solar Aviation Obstruction Light
    Light Characteristics
    Light SourceUltra high intensity CREE LED
    Emitting ColorRed
    Intensity(cd)2000cd±25%
    Horizontal Output(degrees)360
    Vertical Divergence(degrees)≥3
    Flash CharacteristicsFlashing 20FPM,
    Operation ModeDusk-to-Dawn operation
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating Voltage(Vdc)12
    Circuit ProtectionIntegrated
    Solar Characteristics
    Solar Module TypeMono crystalline Silicon
    Output(watts)6×4=24W
    Charging RegulationMicroprocessor controlled
    Battery Characteristics
    Battery typeValve-Regulated Lead Acid Battery(VRLA)
    Nominal Voltage (V)12
    Battery Service LifeAverage 3 years
    WaterproofIP68
    Compliance
    ICAOAnnex 14 Volume 1,'Aerodrome Design and
    Operations’ Sixth edition July 2013, table 6.3
    Medium-intensity Type B Obstacle Light
    FAAL-864
    Optional

    GPS Synchronization


    GSM cellphone monitoring


    NVG - compatible infrared (IR) LED

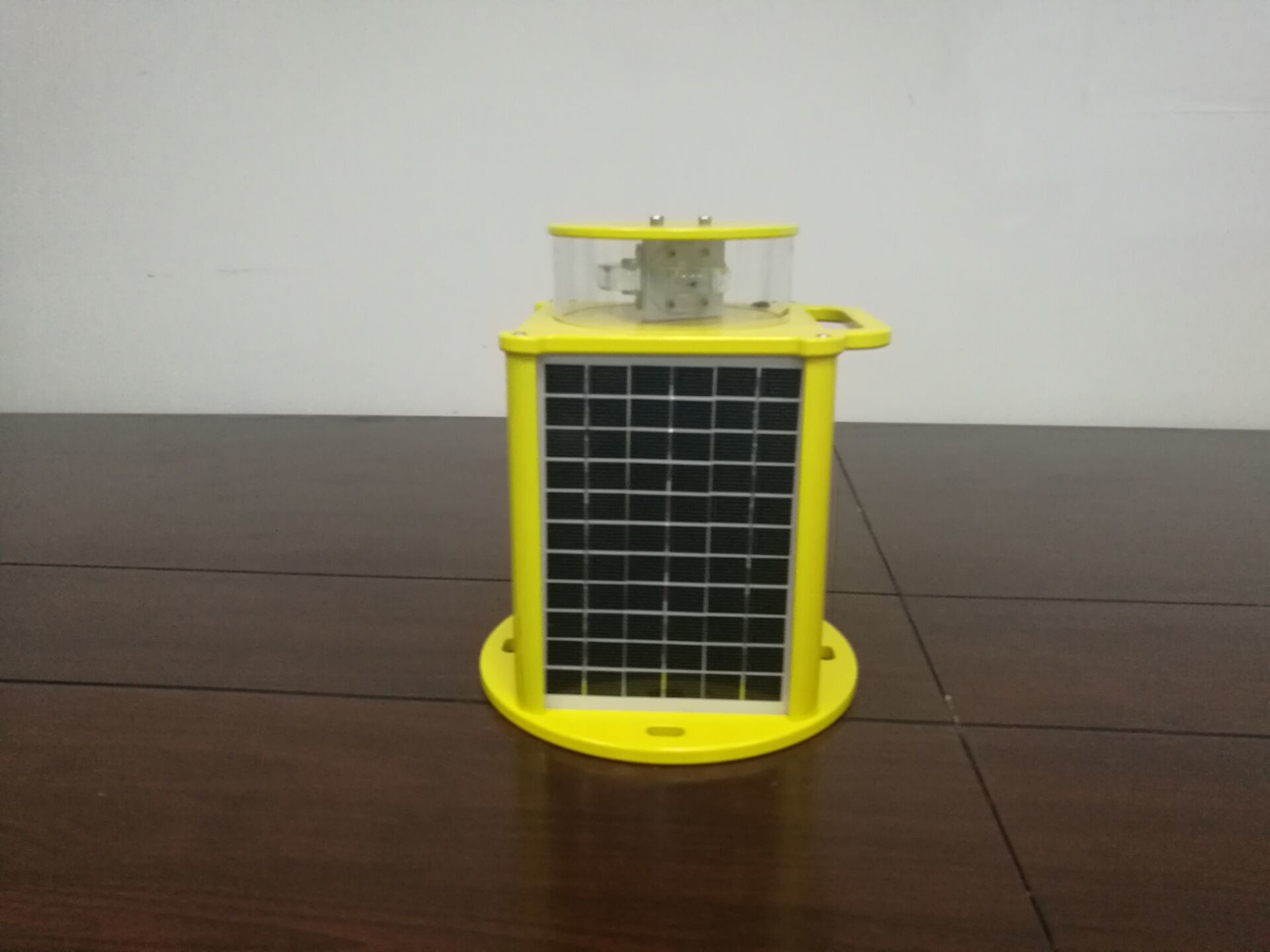

    Product Picture


    White Medium-intensity Type B Solar Powered Aviation Light for High Building
