    LED Warning Lights / Solar Obstruction Light Profession Flash Switch

    Ask Lasest Price
    Brand Name : ANNHUNG
    Model Number : AH-MS/S
    Certification : ICAO
    Price : Negotiable
    Payment Terms : T/T, Western Union, Money Gram
    Supply Ability : 1000 Pieces Per Month
    Delivery Time : shipped in 15 days after payment
    • Product Details
    • Company Profile

    LED Warning Lights / Solar Obstruction Light Profession Flash Switch


    LED Warning Lights / Solar Obstruction Light Profession Flash Switch


    Advantage:


    1. International advanced solar panel reaching more than 10 years service life.
    2. Comprehensive protection in voltage short circuit, overload-voltage, floating Charge and temperature.
    3. Low power consumption profession flash switch.
    4. International-advanced cold LED with low power consumption, high
    rightness and service life of light source reaching 100000hours.
    5. PC material keep from strong impact.
    6. Strong anticorrosion and UV protection.
    7. More than 7 days autonomy.(optional 15days)
    8. Having lightning-protection function.
    9. Side open of battery box can be open for maintenance convenience every easily.
    10. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.


    Detail Description:


    This product is single solar light. This product can work at night(<50cd/m²) and close during the day automatically by Solar panel whicfunction is equal to photocell sensor.


    Application:



    This product is single solar light. Installed in the fuse, it can control flash automatically when ambient brightness is lower than 50 cd/m2.This product can work at night and close during the day automatically by Solar panel which function is equal to photocell sensor. Side on battery box can be opened to be convenient for maintenances.


    Specifications:


    SPECIFICATIONSAH-MS/S Medium-intensity Type B Solar Aviation Obstruction Light Aviation Light
    Light Characteristics
    Light SourceLED
    Available Colors

    Red

    Intensity(cd)

    2,000cd ±25%

    Horizontal Output(degrees)360
    Vertical Divergence(degrees)3
    Reflector TypeFresnel Lens
    Flash CharacteristicsFlash mode (20-60times/minute)
    Operation ModeDusk-to-dawn Automatically as standard.
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating VoltageDC 12V (Solar powered Way),recyclable batteries with the lightest environmental and long life.
    Power(W)20W
    Circuit ProtectionIntegrated
    Temperature Range(℃)-40~60
    Physical Characteristics
    Body MaterialPC
    Base MaterialSUS304 stainless steel
    Mounting200 by 322 by 12
    Height(mm)525
    Width(mm)490
    Depth(mm)490
    Mass(kg)14.6
    Product Life Expectancy5 years plus
    Environmental Factors
    Humidity0~90%
    Wind Speed80m/s
    WaterproofIP65
    Compliance
    ICAO

    Medium-intensity Type B Solar Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3

    FAAMedium-intensity Type B and FAA L-864

    Dimension Drawing

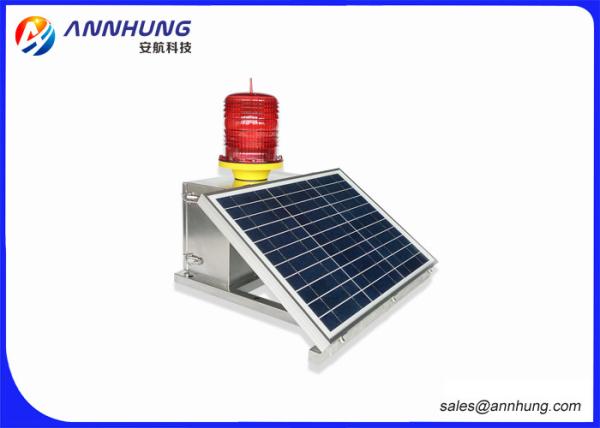

    Product Picture


    LED Warning Lights / Solar Obstruction Light Profession Flash Switch


    LED Warning Lights / Solar Obstruction Light Profession Flash Switch
