Red Double Obstruction Light / Led Aircraft Warning Lights For Tall
Buildings
Standard : ICAO, FAA, CAAC Aviation Obstruction Light Technical
Standards for Airfield Area of Civil Airports International
Standard and Construction of Airports
Application of Aeronautical Obstruction Light
To set the highest point and edge point of tall buildings for
marking it to air traffic.
Installation of Aeronautical Obstruction Light
The installation of aviation obstruction light should makes it
easier to view the outline of the tall buildings from all
directions, and install aviation obstruction light every 45m in
horizontal direction. Generally speaking, the aviation obstruction
light should be installed on the top of the buildings.
1.For Buildings between 105m to150m, install a Type A medium
intensity aviation obstruction light on the top, and install a low
intensity aviation obstruction light on the middle.
2.For Buildings between 45m to105m, install a Type B medium
intensity aviation obstruction light on the top, and install a low
intensity aviation obstruction light on the middle..
3.For Buildings less than 45m, install a double aviation
obstruction light or install a low intensity aviation obstruction
light on the top
Product Application of Aeronautical Obstruction Light
High-rise Building, High Chimney, marking towers (Telecom, GSM,
Microwave & TV),High Pole,Tower Crane, Wind
Tubinebridge.large-scale port machinery,large engineer machinery
and wind turbines.
Packaging & Delivery
Packaging: Plastic bag with paper carton.
Delivery: In 2-30 days after payment.
1. 2 years full warranty, 5 years maintenance since the purchasing
date.
2.Since the purchasing date, full warranty from 1st year to 2nd
year, free maintenance cost and material cost.
3.Since the purchasing date, maintenance from 3rd year to 5th year,
free maintenance charge.
Product Descripton
| Description | Parameter |
|---|
| Working way of two lights | Steady burning, Main-standby (When main lamp fail, standy lamp will
turn ON automatically) |
| Vertical angle | ≥10° |
| Light source | LED |
| Power consumption | 4W |
| Intensity | ≥32.5cd |
| Operating temperature | -40℃~+70℃ |
| Protection standard | IP65 |
| Net Weight | 1.5kg |
| Light Material | Base:Die casting aluminum, housing: PC |

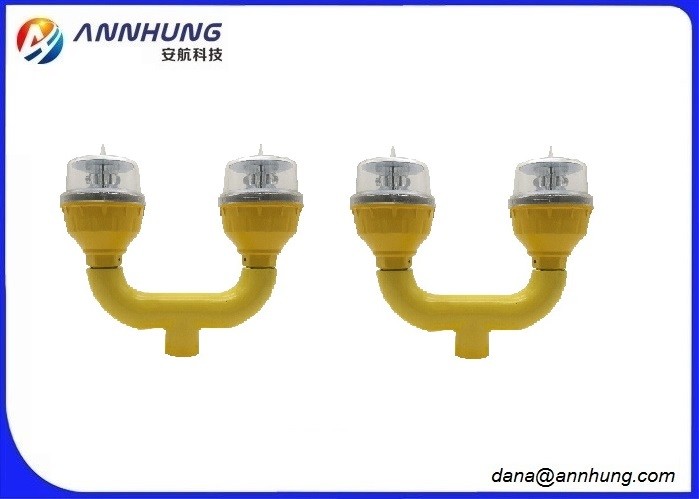

Product Picture of Aeronautical Obstruction Light
Datasheet download: AH-LI-D2
LED Low-intensity L810 Double Aviation Ob...
Electrical
l CREE LED, make sure LED keep bright while use for long time
l Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
Physical
l Bird deterrent spike on top
l Unique designed PMMA lens for converging light and good
transparency
l High translucency and anti-UV polycarbonate cover could use
3-5years without yellowing
l UV protection Powder coated bright yellow color base make better
visibility and also long life in harsh environments()
l Base material is die casting aluminum which has strong corrosion
resistance, Shock and Vibrations protection
l 3/4inch thread hole make pole installation easy
l No screw fix type - just twist, the cover will be fixed tightly
System design
l Built-in photocell for day/night operation(dusk to dawn operation, automatically turn
on when background luminance is below 50cd/m2
l Steady/20FPM/30FPM/60FPM DIP switches on PCB
l Surge and lightning protection
