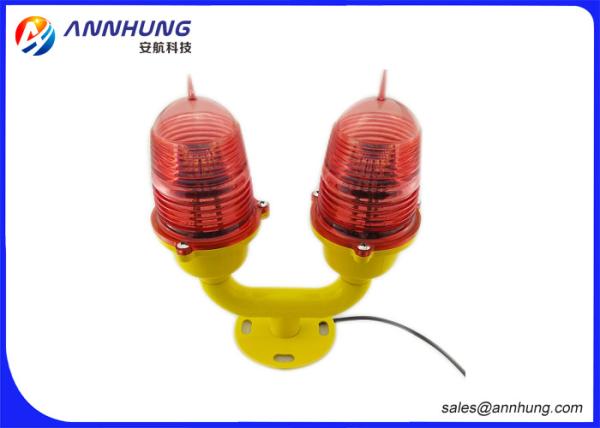

    Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized

    Ask Lasest Price
    Brand Name : Annhung
    Model Number : AH-LI/D
    Certification : CE, RoHS, UL
    Price : Negotiable
    Payment Terms : T/T, Western Union, Money Gram,
    Supply Ability : 1000Pieces/Month
    Delivery Time : Shipped in 15 days after payment
    • Product Details
    • Company Profile

    Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized


    Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized


    Features


    •G3/4 threaded bottom entry for easy mounting

    •Prewired cable makes wiring job easier

    •Available in both single and double type

    •Super-bright OSRAM LEDs reliable light source ensures long lifespan
    •Optimized optical Lens design provides excellent optic distribution
    •Internal LED driver and constant current regulator make the light illuminate steadily
    •Encapsulated and sealed power module provides more reliability and better protection
    •Extremely low power consumption
    •Excellent shock and vibration resistant
    •GE polycarbonate dome, UV-stabilized
    •Aluminum base with powder painted, corrosion-resistant


    Datasheet: AH-LI-D Low-intensity L810 Double Aviation Obstruc...

    Detail Description:


    low intensity red obstruction light is designed based on LED technology, for marking structures outline for warning aircraft during nighttime. Complying with ICAO low intensity type A & B and FAA L-810. OL32 is used for structures less than 45m or intermediate levels combined with medium intensity lights.


    Application:



    Specifications:


    SPECIFICATIONSAH-LI/D Low-intensity Double Aviation Obstruction Light
    Light Characteristics
    Light SourceLED
    Available ColorsRed
    Intensity(cd)≥32.5(option 10cd, 50cd, 80cd,100cd)
    Horizontal Output(degrees)360
    Vertical Divergence(degrees)≥10
    Reflector TypeFresnel Lens
    Flash CharacteristicsFlashing( 20times/minute as standard) or Steady adjustable
    Operation ModeDusk-to-dawn Automatically as standard. 24hours operation as option.
    LED Life Experience(hours)>100,000
    Electrical Characteristics
    Operating VoltageAC220V (option voltage, eg. AC120V, AC110V, DC48V)
    Power(W)4
    Circuit ProtectionIntegrated
    Temperature Range(℃)-40~70
    Physical Characteristics
    Body MaterialPolycarbonate
    Base MaterialDie-casting aluminum
    Mounting3/4inches or 1 inches
    Height(mm)258
    Width(mm)136
    Depth(mm)320
    Mass(kg)2
    Product Life Expectancy5 years plus
    Environmental Factors
    Humidity10%-95%
    Wind Speed80m/s
    WaterproofIP65
    Compliance
    ICAOAnnex 14 Volume 1,'Aerodrome Design and Operations’ Forth0 edition July 2004, table 6.3
    FAAL-810 Steady-burning Red Aviation Obstruction Light

    Dimension Drawing



    Product Picture
